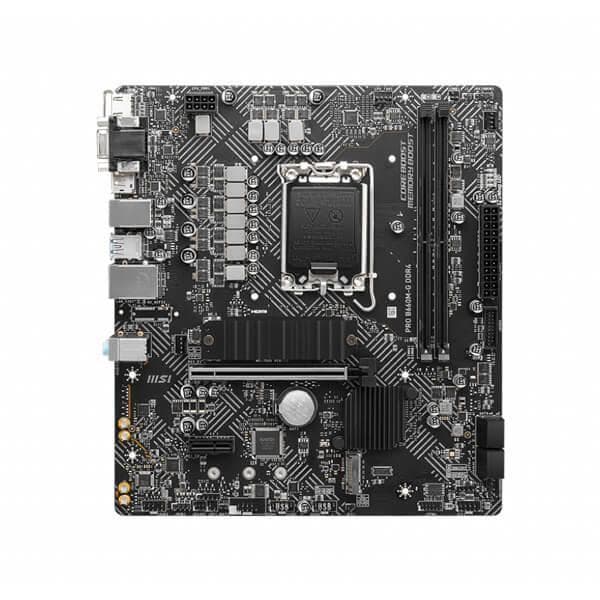

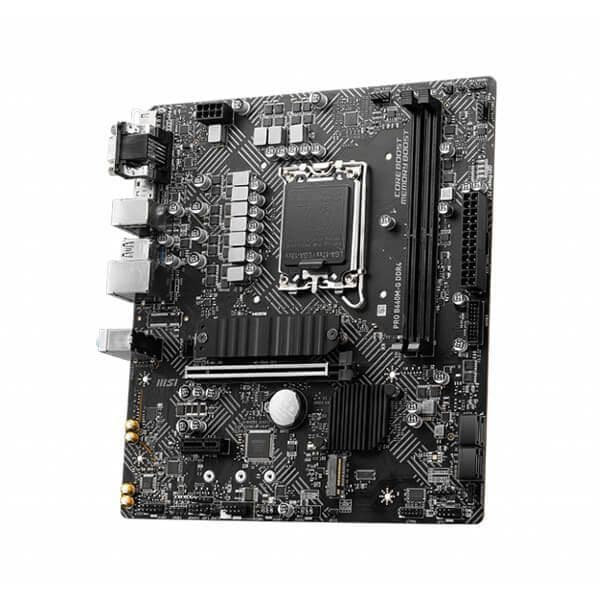

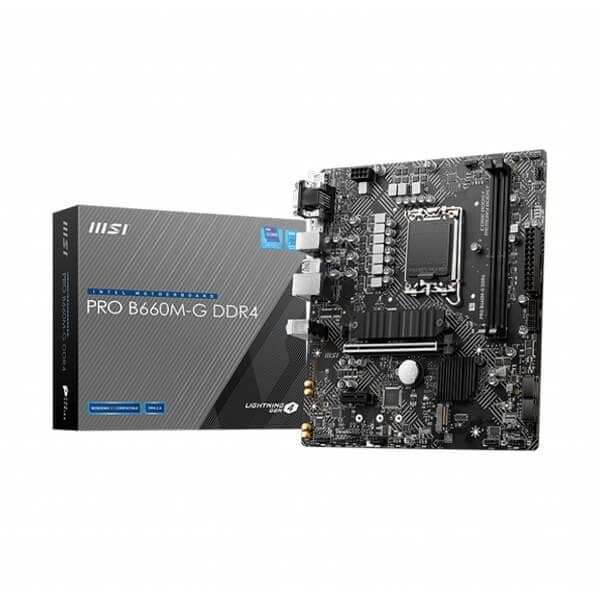

MSI PRO B660M-G DDR4 Intel Motherboard

Features:

• MSI B660M-G Supports 12th Gen Intel^® Core™, Pentium^® Gold and Celeron^® processors for LGA 1700 socket
• B660M-G Supports DDR4 Memory, up to 4600+(OC) MHz
• Core Boost : With premium layout and digital power design to support more cores and provide better performance
• Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
• Lightning Fast Experience: PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr
• 2.5G LAN: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
• Audio Boost: Reward your ears with studio grade sound quality
• Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength.

• Supports Intel Core 12th Gen Processors (LGA 1700)
• 2 DIMMs with DDR4 Boost: Dual Channel (64GB Max. / 4600MHz OC)
• 1 x PCI-e 4.0 x16 (Steel Armor) Graphics Card Slot
• Lightning Gen4 M.2 Slots (1 with Shield Frozr)
• 7.1 HD Audio with Audio Boost
• 2.5G LAN

PRO B660M-G DDR4

Business Elegance

The PRO B660M-G DDR4 is a business-oriented micro-ATX motherboard featuring the latest Intel B660 chipset outfitted with Gen4 M.2 storage & versatile video output capabilities.

Supports Intel Core 12th Gen Processors The PRO B660M-G DDR4 motherboard supports 12th Gen Intel Core, Pentium Gold, and Celeron processors.   Form Factor: Micro-ATX Socket Type: LGA 1700 Chipset: Intel B660 Intel B660 chipset motherboards support memory overclocking but not CPU overclocking.	Integrated Cooling Features Chipset Heatsink: Provides passive cooling. Frozr AI Cooling: Automatically adjusts system fan settings based on CPU & GPU temperatures	2 x DDR4 Dual Channel (4600+ MHz Overclocked*) Memory Boost: A fully-isolated DDR circuit delivers pure data signals for optimal gaming and overclocking performance. XMP profiles in MSI BIOS are MSI OC LAB checked and can be easily enabled with auto power settings for optimized memory speed and stability. *1DPC 1R Max. overclocking frequency 4600+ MHz depending on memory module capability.

Gen4 M.2 Connectors The PRO B660M-G DDR4 motherboard features MSI's latest M.2 slots (Intel Optane supported) 2 x Gen4 x4 64Gb/s slots *M.2 specifications may vary depending on the CPU installed.	M.2 Shield Frozr Even the world’s fastest SSDs will automatically slow if thermal throttling firmware detects excessively high temperatures. M.2 Shield Frozr is MSI's most advanced thermal solution, offering the best possible protection to ensure maximum SSD transfer speed performance.	2.5G LAN Controller 2.5G LAN: A 2.5Gbps LAN controller delivers a premium network experience. 4K & Legacy Video Support: Includes HDMI, DisplayPort and VGA ports for both digital and legacy display. HD Audio: 7.1-Channel High Definition Audio with Audio Boost.
