MSI MPG Z890 CARBON WIFI LGA 1851 Intel Z890 SATA 6Gb/s ATX Motherboard

Feature

• Support Intel^® Core™ Ultra Processors (Series 2) for LGA 1851 socket
• Supports DDR5 Memory, up to 9200+ MT/s (OC)
• Ultra Performance: Direct 20+1+1+1 phases power, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 8-layer PCB made by 2oz thickened copper and server-grade level material
• Frozr Guard: Enlarged heatsink with heat-pipe, MOSFET thermal pads rated for 7W/mk, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
• EZ DIY: EZ PCIe Release, EZ M.2 Shield Frozr II, EZ M.2 Clip II and EZ Antenna
• Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 M.2
• Ultra Connect: Thunderbolt™ 4 and Intel^® Killer™ 5G LAN + 2.5G LAN with Wi-Fi 7 Solution – The latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
• Audio Boost 4: Reward your ears with studio grade sound quality for the most immersive gaming experience

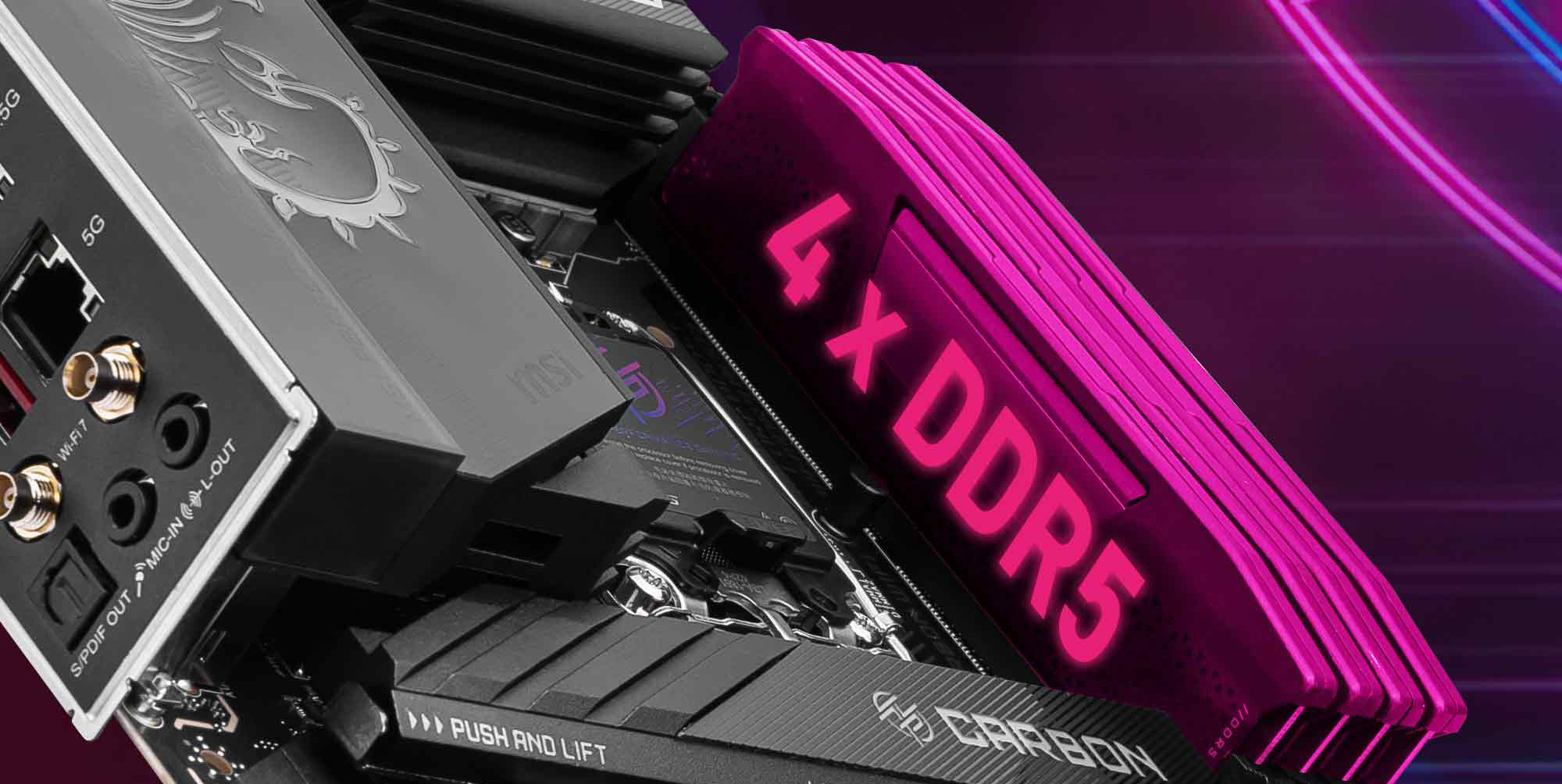

Designed to help simplify builds, MSI's EZ technology makes it easy to install one M.2 PCIe 5.0 and four PCIe 4.0 SSDs to store your games library, applications, and important files. There are also four SATA III connectors available alongside four DDR5 DIMM slots. With two PCIe 5.0 x16 slots and one PCIe 4.0 x16 slot, you can install powerful graphics cards and other compatible expansions. The rear panel features two Thunderbolt 4 ports that can transfer up to 40 Gb/s with compatible devices or connect a USB-C compatible 8K display. The one USB-C and 10 USB-A ports work with 10 Gb/s devices. An internal header allows you to connect a front panel 20 Gb/s USB-C port. Built-in Wi-Fi 7 (802.11be) support and 2.5 and 5 Gb/s Ethernet ports provide you with connections to compatible network devices for smooth video streaming and low-latency online games.

EZ M.2 Clip II

MSI's EZ M.2 CLIP II makes SSD installation seamless. Insert the SSD into the M.2 slot and press it down to lock it in place with the clip. Flicking the clip outward lets you remove the SSD. Use the EZ M.2 Clip II remover tool to detach or reposition the clip on the motherboard.

EZ PCIe Release

An easy-to-access physical button release mechanism helps to remove any PCIe card with a single tap, making it easier to upgrade to a new GPU or other compatible device.

EZ M.2 Shield Frozr II

The toolless design makes installing or removing your M.2 SSD and Shield Frozr easy.

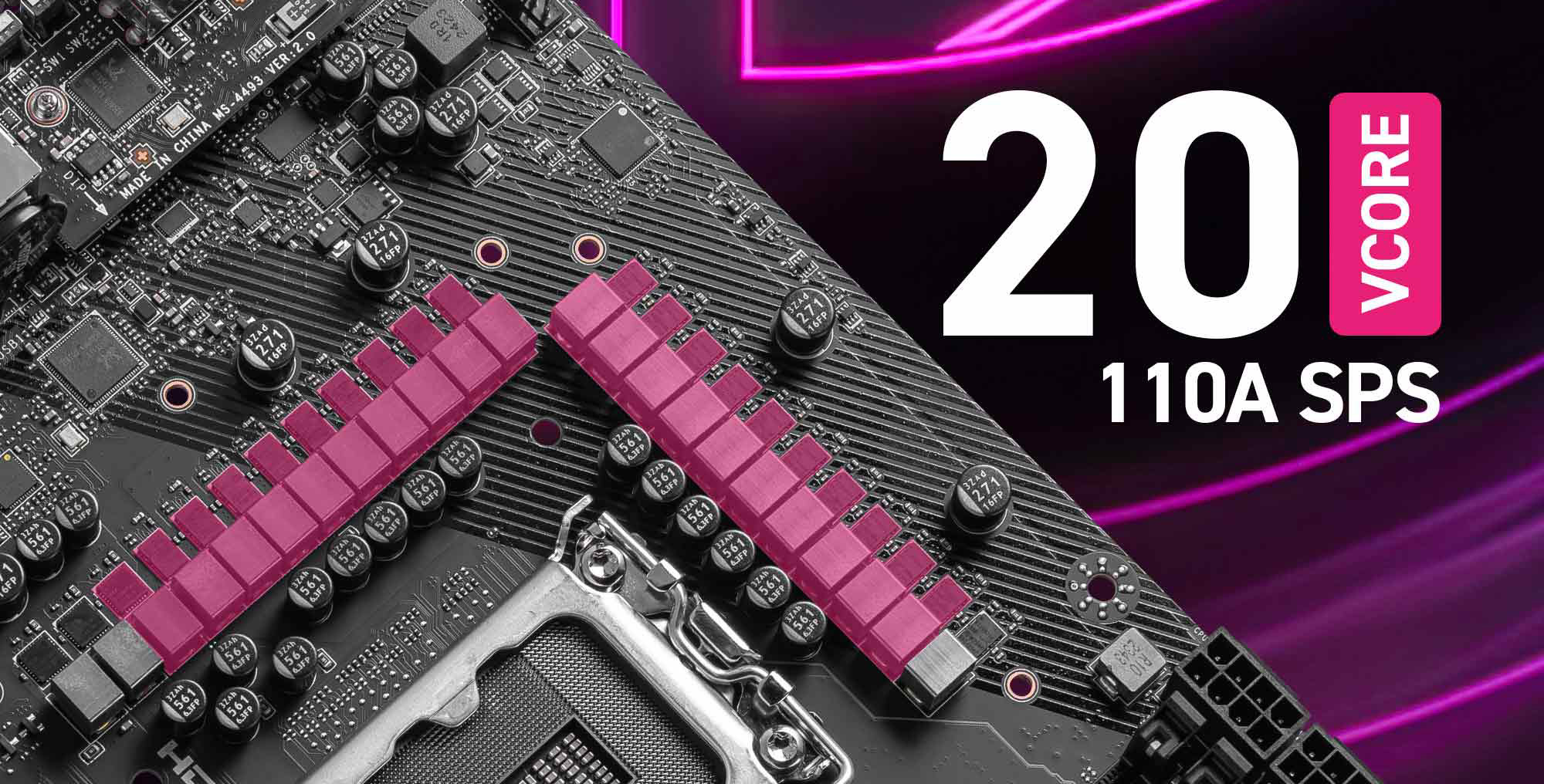

Direct 20+1+1+1 Power Design

Achieve and sustain the maximum performance with a flagship VRM design, built with a total of Direct 20+1+1+1 Power Phases. Combining dual power connectors and 110A Smart Power Stage, this motherboard is ready for Intel Core Ultra processors (Series 2).

Smart Button

Customize the Smart Button to perform different functions such as reset, Safe Boot, and Turbo Fan speed.

Flash BIOS

Flash the BIOS with only a connected power supply and a flash drive. No CPU or memory required.

Clear CMOS

Restore the BIOS to its default settings with the push of a button.

Wi-Fi 7

Wi-Fi 7 (802.11be) introduces higher speeds, wider channels, improved efficiency, and reduced latency over Wi-Fi 6 (802.11ax), with maximum speeds of up to 5.8 Gb/s. Utilizing 320 MHz on the 6 GHz band ensures reliability during simultaneous transmissions at max speeds and the 4096 QAM boosts peak transmission rates and network capacity. Multi-Link Operation enables devices to simultaneously send and receive data across several frequency bands and channels to meet traffic demands and the growing number of wireless devices.

Thunderbolt 4

In addition to transferring up to 40 Gb/s with a reversible USB-C connector, Thunderbolt 4 supports up to one 8K monitor or two 4K displays simultaneously. It also works with 20 Gb/s USB4 and you can daisy chain up to six devices to a single port.

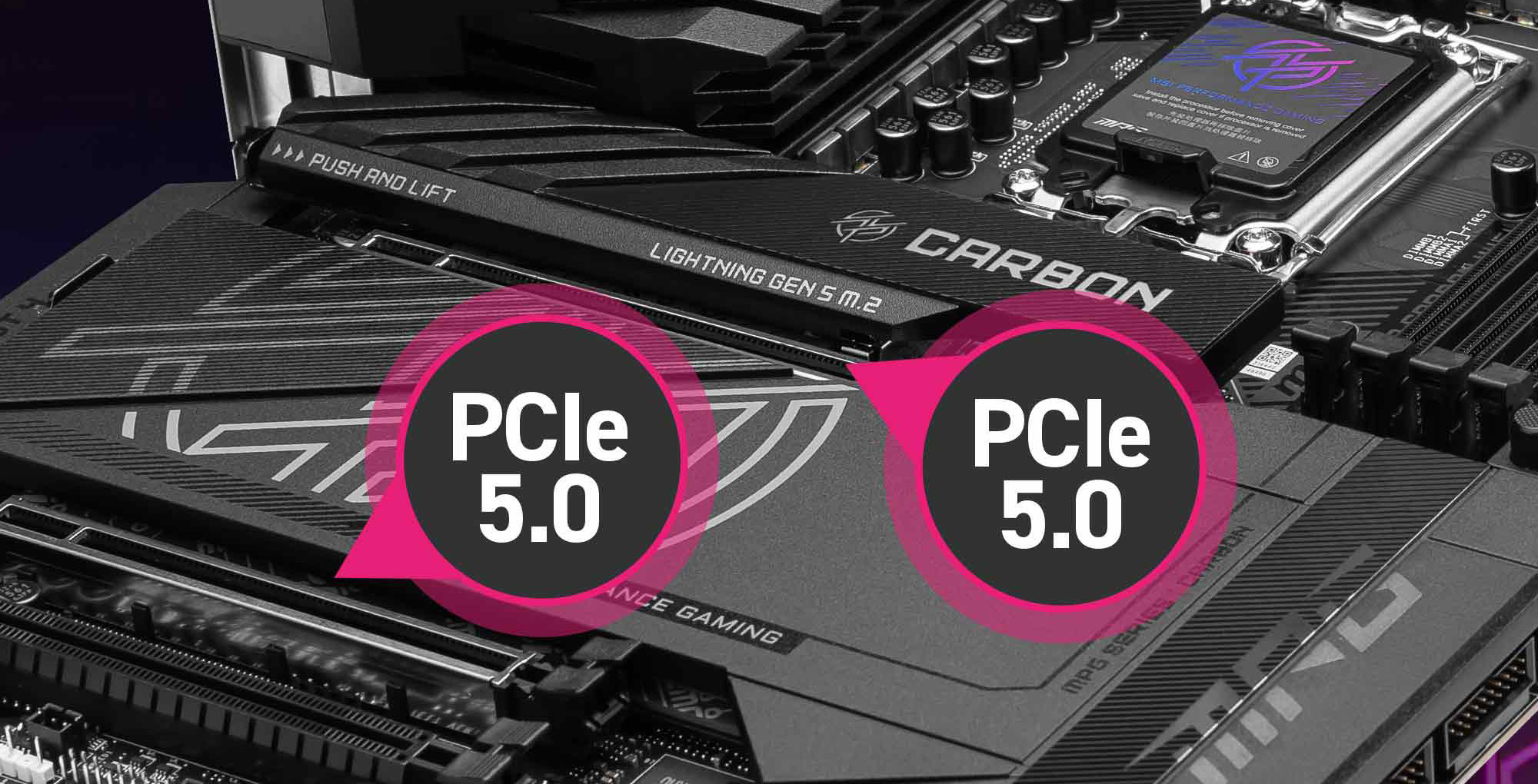

PCIe 5.0

Doubling the speed of the previous generation, the PCIe 5.0 x16 interface can reach 128 GB/s.

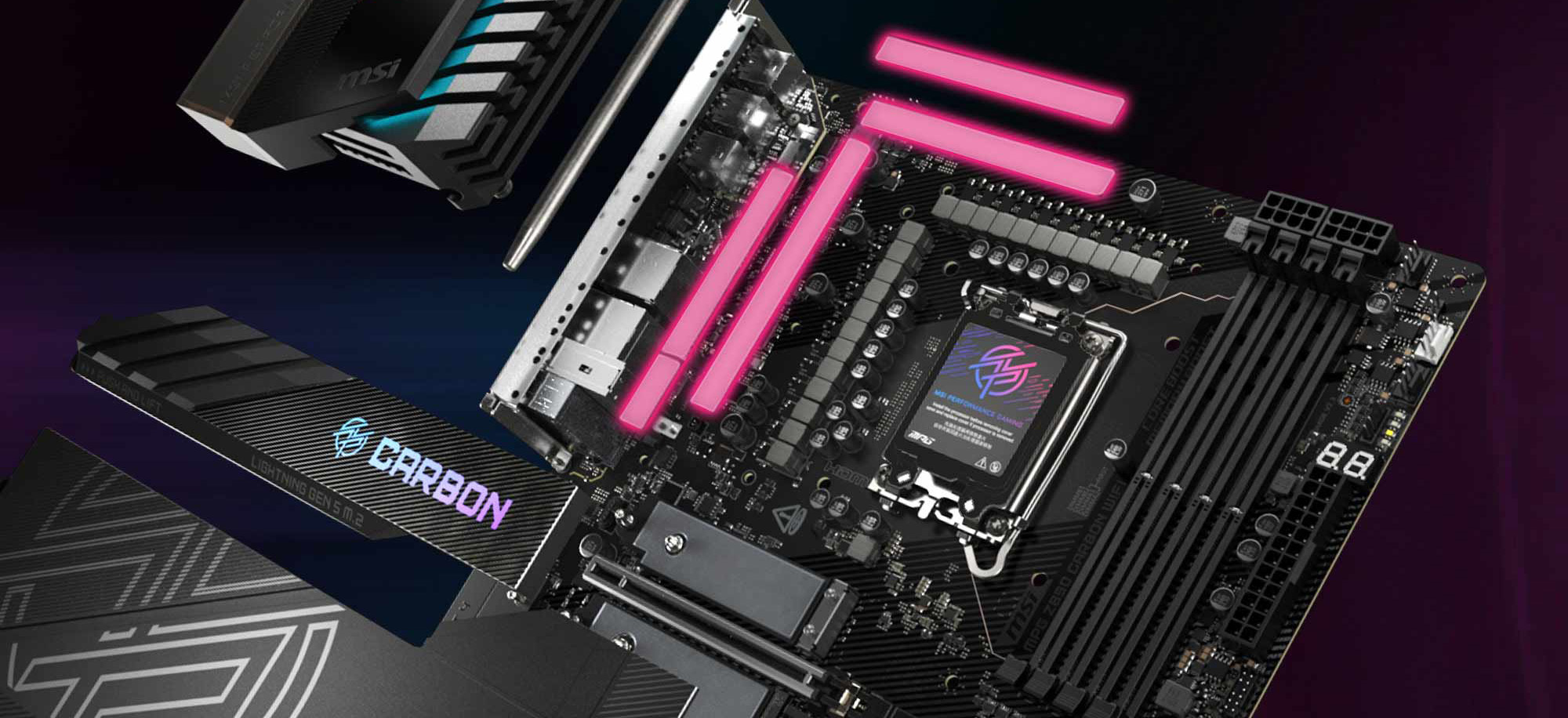

Frozr Design

With Frozr Guard, the motherboard features an extended heat sink, two connected MOS heatpipes, the M.2 Shield Frozr, high quality 7W/mK MOSFET thermal pads, enhanced M.2 thermals, and an enlarged PCH heat sink. With Frozr Sync, you can connect and synchronize with MSI coolers and cases with strategically positioned pin-header locations, including a dedicated pump-fan header. Utilize Cooling Wizard in the MSI Center app for comprehensive fan management across all compatible MSI products.

Audio Boost 4

The integrated audio system immerses you in crystal clear virtual 7.1 surround sound.
