Supports AMD Ryzen 5000 Series Processors

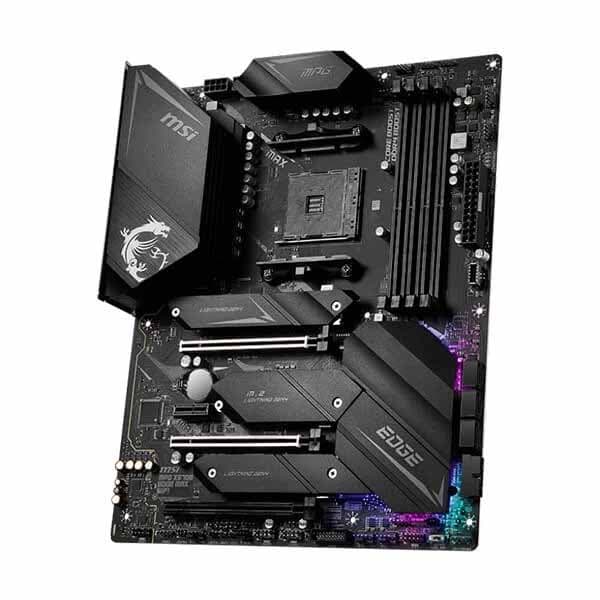

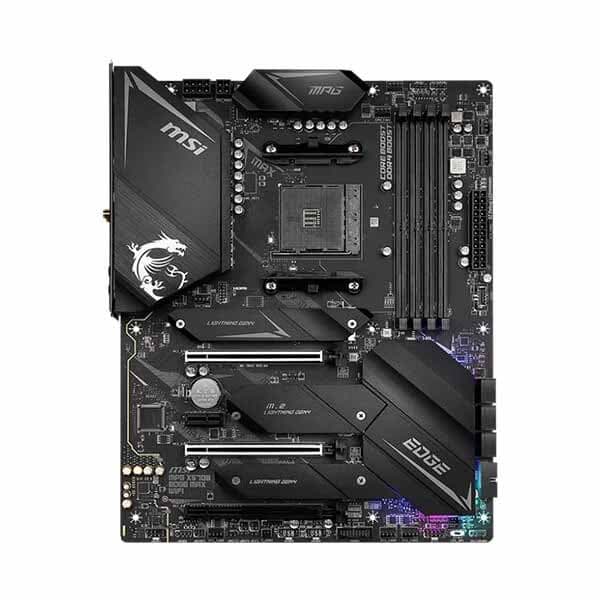

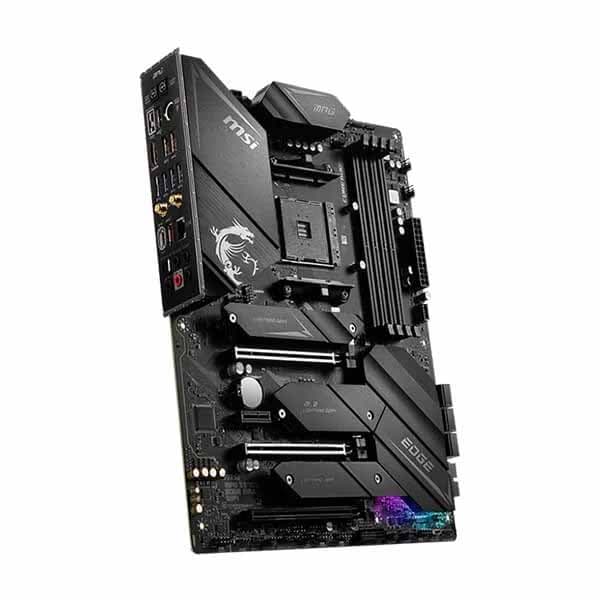

The MPG X570S EDGE MAX WIFI motherboard supports Ryzen 5000 series, 5000 G-series, 4000 G-series, 3000 series, 3000 G-series, 2000 series, 2000 G-series processors.

• Form Factor: ATX
• Socket Type: AMD AM4
• Chipset: AMD X570

12+2 Duet Rail Power System

With its 8-pin plus 4-pin power connectors and exclusive Core Boost technology, the MPG X570S EDGE MAX WIFI is able to sustain heavy CPU power loads to support system-demanding game settings:

1. 2-Phase SOC Power
2. Digital PWM IC
3. 12 Duet Rail CPU Power System, Smart Power Stage 75A

Integrated Cooling Features

VRM Cooling: Features an aluminium cover with heatsink, 7W/mK VRM thermal pad and extra choke thermal pad

SSD Cooling: M.2 Shield Frozr prevents thermal throttling.

System Cooling: Connect and synchronize cooling with strategically placed pin-headers - including a dedicated pump-fan header.

PCB Cooling: Premium 6-layer printed circuit design with 2 oz. thickened copper improves heat dissipation & reliability.

Fortified PCI-e 4.0 x16 Slots

MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points to support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor also shields the point of contact from electromagnetic interference:

• 2 x PCI-e 4.0 x16 slots (with Steel Armor)
• 1 x PCI-e 3.0 x16 slot

AMD CrossFire Technology supported

Gen4 M.2 Connectors

The MPG X570S EDGE MAX WIFI motherboard features MSI's latest M.2 slots:

• 3 x Gen4 x4 64Gb/s slots*

*M.2 specifications may vary depending on the CPU installed.

M.2 Shield Frozr

Even the world’s fastest SSDs will automatically slow if thermal throttling firmware detects excessively high temperatures.

M.2 Shield Frozr is MSI's most advanced thermal solution, offering the best possible protection to ensure maximum SSD transfer speed performance.

4 x DDR4 Dual Channel (5300+ MHz OC)

DDR4 Boost: A fully-isolated DDR circuit delivers pure data signals for optimal gaming and overclocking performance.

A-XMP profiles in MSI BIOS are MSI OC LAB assigned and can be easily enabled with auto power settings for optimized memory speed and stability.

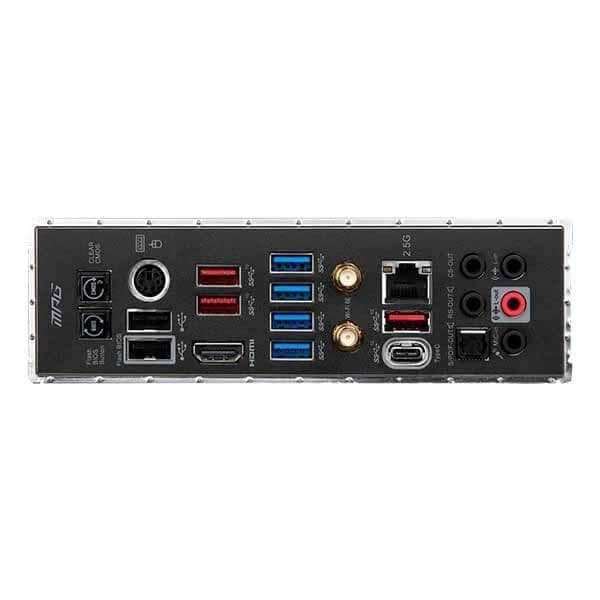

Wi-Fi 6E & Bluetooth 5.2

Wi-Fi 6E: The latest Wi-Fi 6E solution supports 6GHz spectrum, while Bluetooth 5.2 offers data transfer speeds up to 2400Mbps.

2.5G LAN: A Realtek 8125B 2.5Gbps LAN controller delivers a premium network gaming experience.

HD Audio: 7.1-Channel High Definition Audio with Audio Boost 5 & S/PDIF output.
