Supports AMD Ryzen 5000 Series Processors

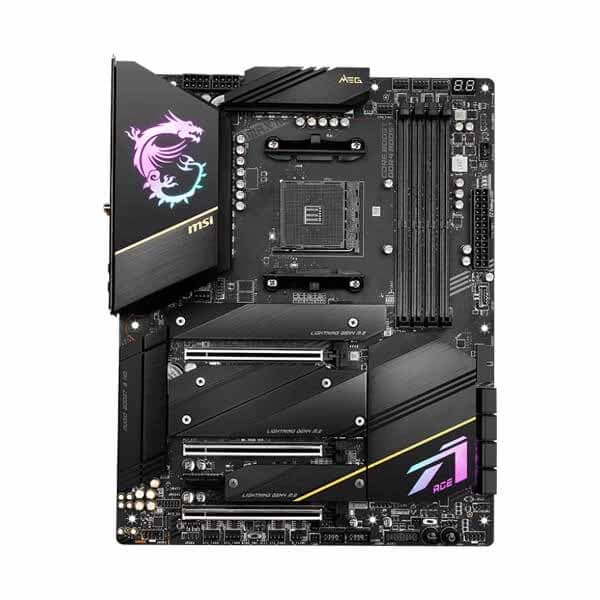

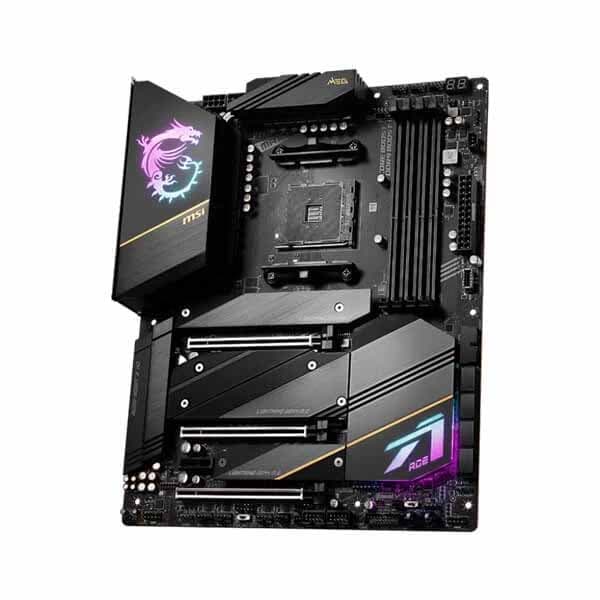

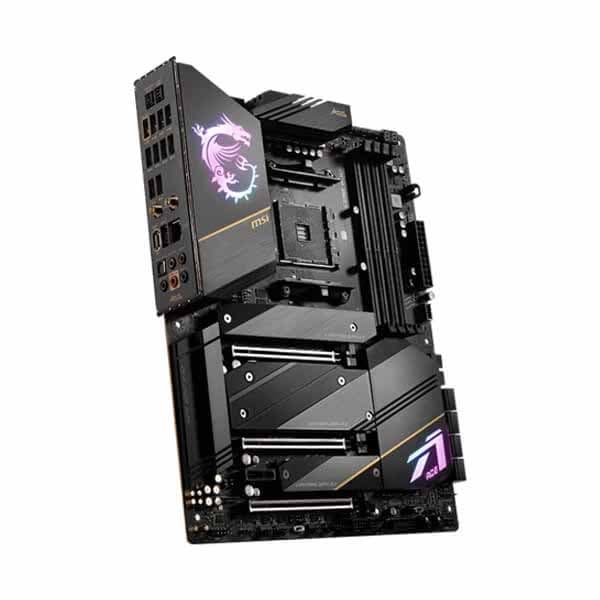

The MEG X570S ACE MAX motherboard supports Ryzen 5000 series, 5000 G-series, 4000 G-series, 3000 series, 3000 G-series, 2000 series, 2000 G-series processors.

• Form Factor: ATX
• Socket Type: AMD AM4
• Chipset: AMD X570

16+2 Direct Power Design with 90A SPS

Unleash and sustain the maximum performance with MSI's flagship VRM design built with a total of 16+2 direct power phases.

Combining dual 8-pin power connectors and exclusive Core Boost technology, the MEG X570S ACE MAX motherboard is ready for the challenge of high-end processor overclocking.

Premium Cooling Solutions

VRM Cooling: Features an aluminum cover, connecting heat pipe, choke and 7W/mK thermal pads.

PCB Cooling: A server-grade printed circuit board features 2 oz. thickened copper and MOSFET Baseplate for improved heat dissipation & reliability.

SSD Cooling: Double-sided M.2 Shield Frozr prevents thermal throttling.

System Cooling: Connect and synchronize cooling with strategically placed pin-headers - including a dedicated pump-fan header.

Chipset Cooling: New & enlarged passively-cooled chipset heatsink generates zero noise.

Fortified PCI-e 4.0 x16 Slots

MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points to support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor also shields the point of contact from electromagnetic interference:

• 3 x PCI-e 4.0/3.0 x16 slots (with Steel Armor)
• 1 x PCI-e 4.0 x1 slot

NVIDIA SLI & AMD CrossFire Technology supported

Gen4 M.2 Connectors

The MPG X570S ACE MAX motherboard features MSI's latest M.2 slots:

• 4 x Gen4 x4 64Gb/s slots*

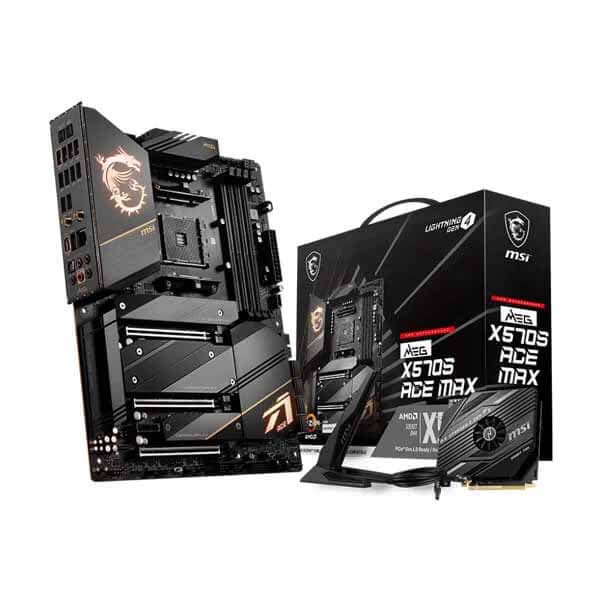

• An additional 2 x Gen4 x4 64Gb/s slots can be added via XPANDER-Z PCI-e card (included)

*M.2 specifications may vary depending on the CPU installed.

M.2 Shield Frozr

Even the world’s fastest SSDs will automatically slow if thermal throttling firmware detects excessively high temperatures.

M.2 Shield Frozr is MSI's most advanced thermal solution, offering the best possible protection to ensure maximum SSD transfer speed performance.

4 x DDR4 Dual Channel (5300+ MHz OC)

DDR 4 Boost: A fully-isolated DDR circuit delivers pure data signals for optimal gaming and overclocking performance.

A-XMP profiles in MSI BIOS are MSI OC LAB tested and can be easily enabled with auto power settings for optimized memory speed and stability.

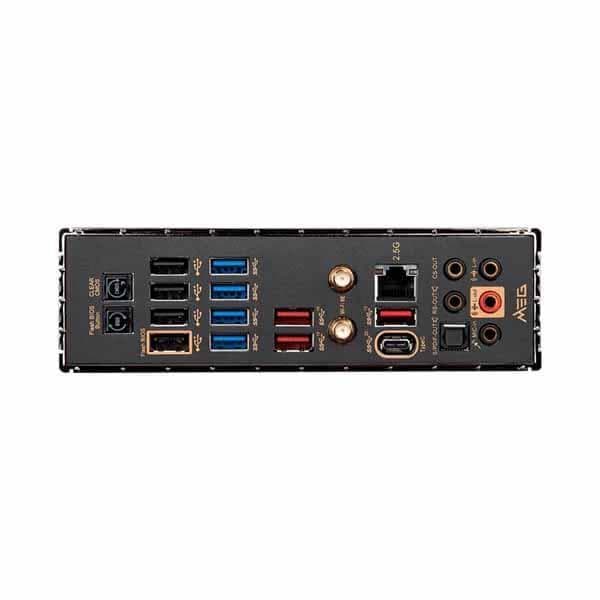

Wi-Fi 6E & Bluetooth 5.2

Wi-Fi 6E: The latest Wi-Fi 6E solution supports 6GHz spectrum, while Bluetooth 5.2 offers data transfer speeds up to 2400Mbps.

2.5G LAN: A Realtek 8125B 2.5Gbps LAN controller delivers a premium network gaming experience.

USB 3.2 Gen 2x2: Enables ultra-fast 20Gbps data transfer rates between devices.

HD Audio: 7.1-Channel High Definition Audio with Audio Boost 5 HD & S/PDIF output.
