MSI is one of the most trusted names in gaming and esports with countless hours and significant resources invested into premier esports leagues and tier-1 gaming teams. By supporting and working with the best of the best, MSI is able to integrate competitive gaming knowledge and aspirations with technological innovation to create new products that shatter today's performance limits.

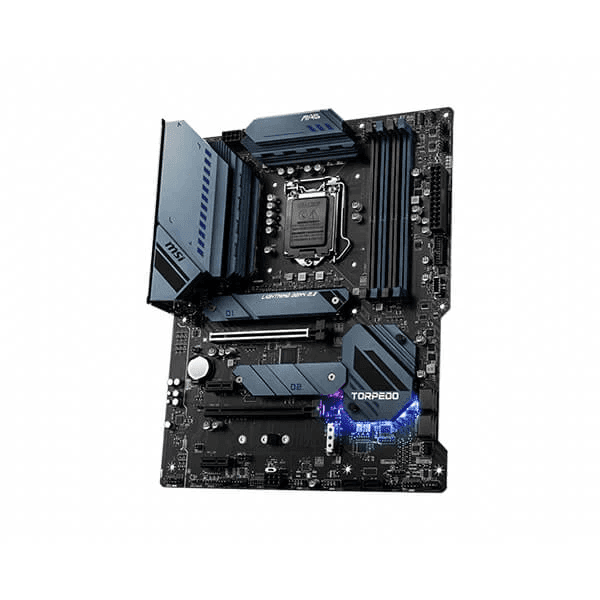

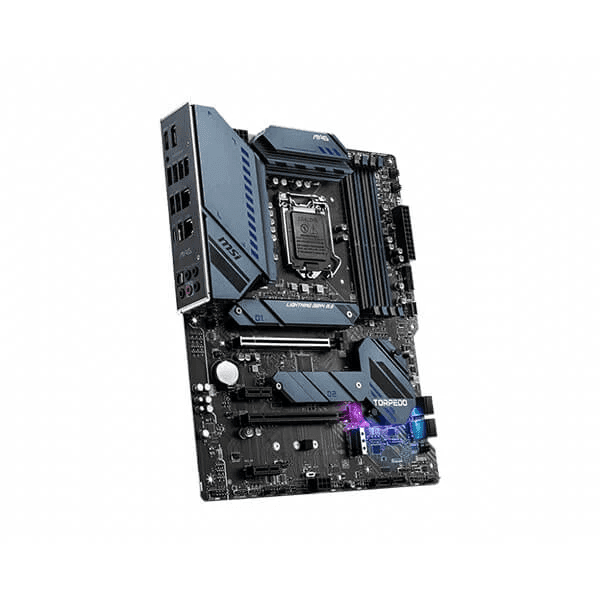

The MAG Z590 TORPEDO delivers a full Intel Core 11th Gen ready platform which offers high-end performance and sophisticated aesthetics.
|
|
|
|
|---|---|---|---|
Supports Intel Core 11th Gen ProcessorsThe MAG Z590 TORPEDO motherboard supports 11th Gen Intel Core, 10th Gen Intel Core, Pentium Gold, and Celeron processors. Form Factor: ATX Socket Type: LGA 1200 Chipset: Intel Z590 |
14+1+1 Duet Rail Power SystemWith its 8+4 pin power connectors and exclusive Core Boost technology, the MAG Z590 TORPEDO is able to sustain heavy CPU power loads to support system-demanding game settings: 1. 14 Duet Rail CPU Power System, DrMOS 60A 2. 2-Phase GT Power 3. 1-Phase SA Power 4. Digital PWM IC |
Integrated Cooling FeaturesVRM Cooling: Features a heavy-plated MOS heatsink , heat pipe and 7W/mK thermal pads. PCB Cooling: Premium 6-layer printed circuit design with 2 oz. thickened copper improves heat dissipation & reliability. SSD Cooling: M.2 Shield Frozr prevents thermal throttling. System Cooling: Connect and synchronize cooling with strategically placed pin-headers - including a dedicated pump-fan header. |
Fortified PCI-e 4.0 x16MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points to support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor also shields the point of contact from electromagnetic interference: 1 x PCI-e 4.0/3.0 x16 slot (with Steel Armor) 1 x PCI-e 3.0 x16 slot (CrossFire supported) 2 x PCI-e 3.0 x1 slots |
|
|
|
|
|---|---|---|---|
Gen4 & Gen3 M.2 ConnectorsThe MAG Z590 TORPEDO motherboard features MSI's latest M.2 slots (Intel Optane supported): 1 x Gen4 x4 64Gb/s slot 2 x Gen3 x4 32Gb/s slots *M.2 specifications may vary depending on the CPU installed. |
M.2 Shield FrozrEven the world’s fastest SSDs will automatically slow if thermal throttling firmware detects excessively high temperatures. M.2 Shield Frozr is MSI's most advanced thermal solution, offering the best possible protection to ensure maximum SSD transfer speed performance. |
4 x DDR4 Dual Channel (5333 MHz OC)DDR4 Boost: A fully-isolated DDR circuit delivers pure data signals for optimal gaming and overclocking performance. XMP profiles in MSI BIOS are MSI OC LAB tested and can be easily enabled with auto power settings for optimized memory speed and stability. |

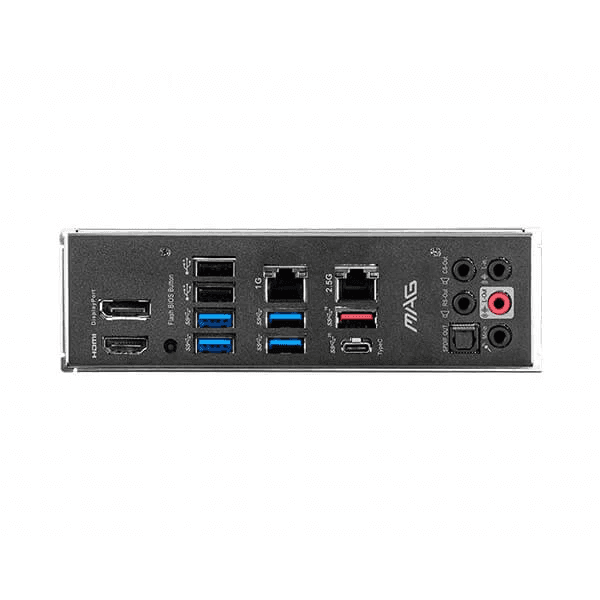

DUAL LANDUAL LAN: An Intel I225-V 2.5Gbps LAN controller delivers a premium network gaming experience. USB 3.2 Gen 2x2 Type-C: Connect to devices and transfer files at unpredicted rates: 20Gb/s. HD Audio: 7.1-Channel High Definition Audio with Audio Boost 5 & S/PDIF output. |
MSI
Z590
Black
4.71907E+12
MSI MAG
ATX
Intel
Gaming
DDR4
LGA 1200
3 Years
MAG Z590 Torpedo
2 kg
30 x 24 x 6 cm
