• Form Factor: ATX
• Socket Type: AM5
• Chipset: AMD X870E

• Digital PWM IC
• 14 Duet Rail Power System (80A / SPS)
• 2 Phase SOC Power
• 1 Phase MISC Power

Frozr Design

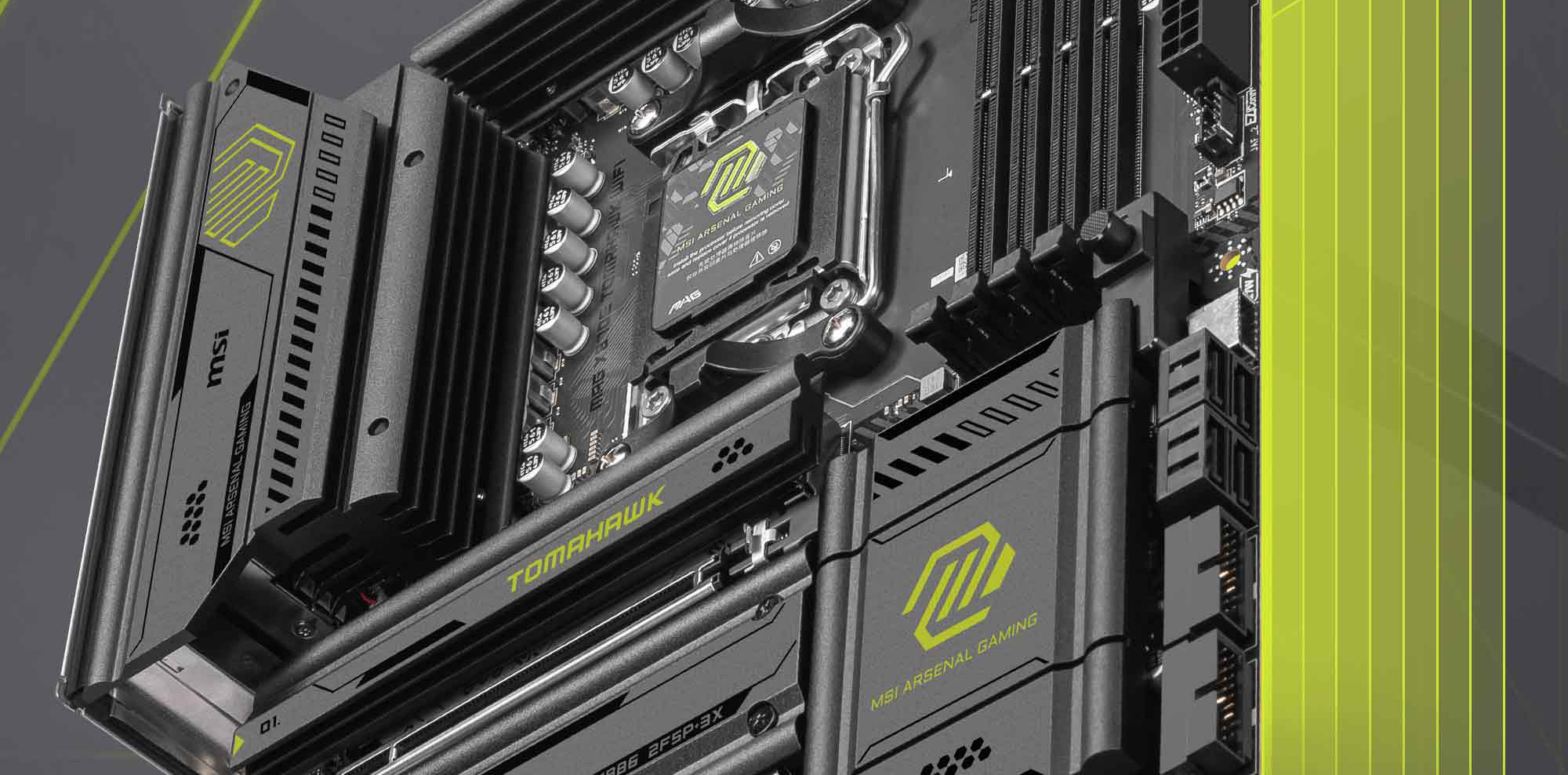

• Frozr Guard: Extended Heatsink design, 7W/mK MOSFET thermal pads, extra choke thermal pads and EZ M.2 Shield Frozr II for improved thermal dissipation.
• Frozr Sync: Connect and synchronize cooling with strategically placed pin-headers - including CPU fan header (2A), Combo fan (3A, supports both pump fan and system fan) and system fans.
• Frozr Control: Manage speeds and temperature for all fans of your system in MSI Center with Cooling Wizzard and Frozr AI Cooling.

4 x DDR5 Dual Channel (8400+ MT/s OC)*

• Memory Boost: A fully-isolated DDR circuit delivers pure data signals for optimal gaming and overclocking performance.
• High-Efficiency Mode: Enabling High-Efficiency-Mode in the MSI BIOS increases memory bandwidth and reduces latency. Four different modes allow users to find out the optimal configuration based on the quality of their memory modules.
• EXPO Profiles in the MSI BIOS are MSI OC LAB optimized and can be easily enabled with auto power settings for optimized memory speed and stability.

* 1DPC 1R Max. overclocking frequency 8400+ MT/s, supports AMD EXPO and Intel XMP.

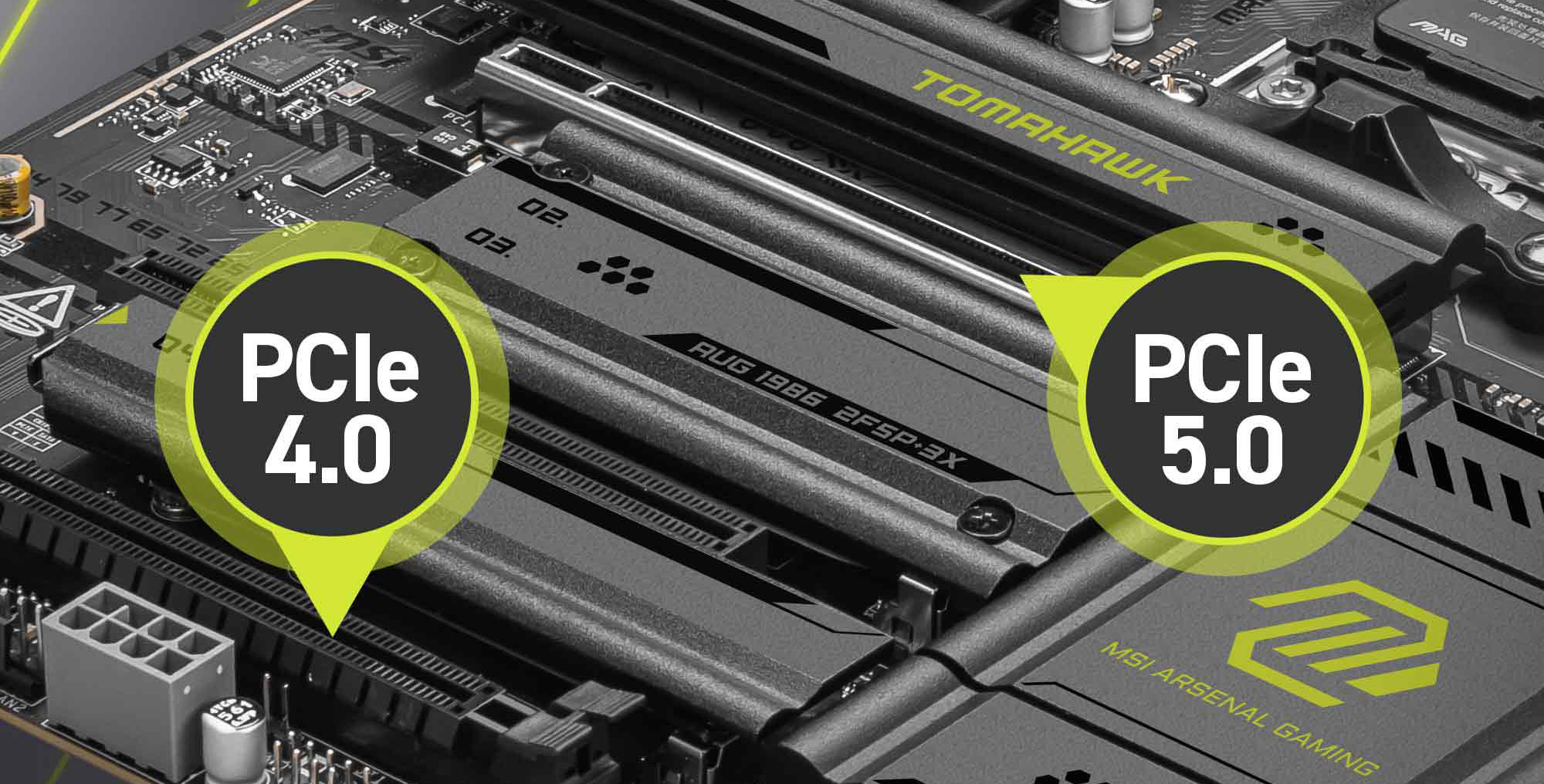

• 1 x PCIe 5.0/4.0/3.0 x16 slot* (one with Steel Armor II** and EZ PCIe Release)
• 1 x PCIe 4.0/3.0 x16 slot*
• 1 x PCIe 3.0 x1 slot*

* Supports x16x4

** MSI Surface Mount Technology (SMT) solder welding improves signal clarity.

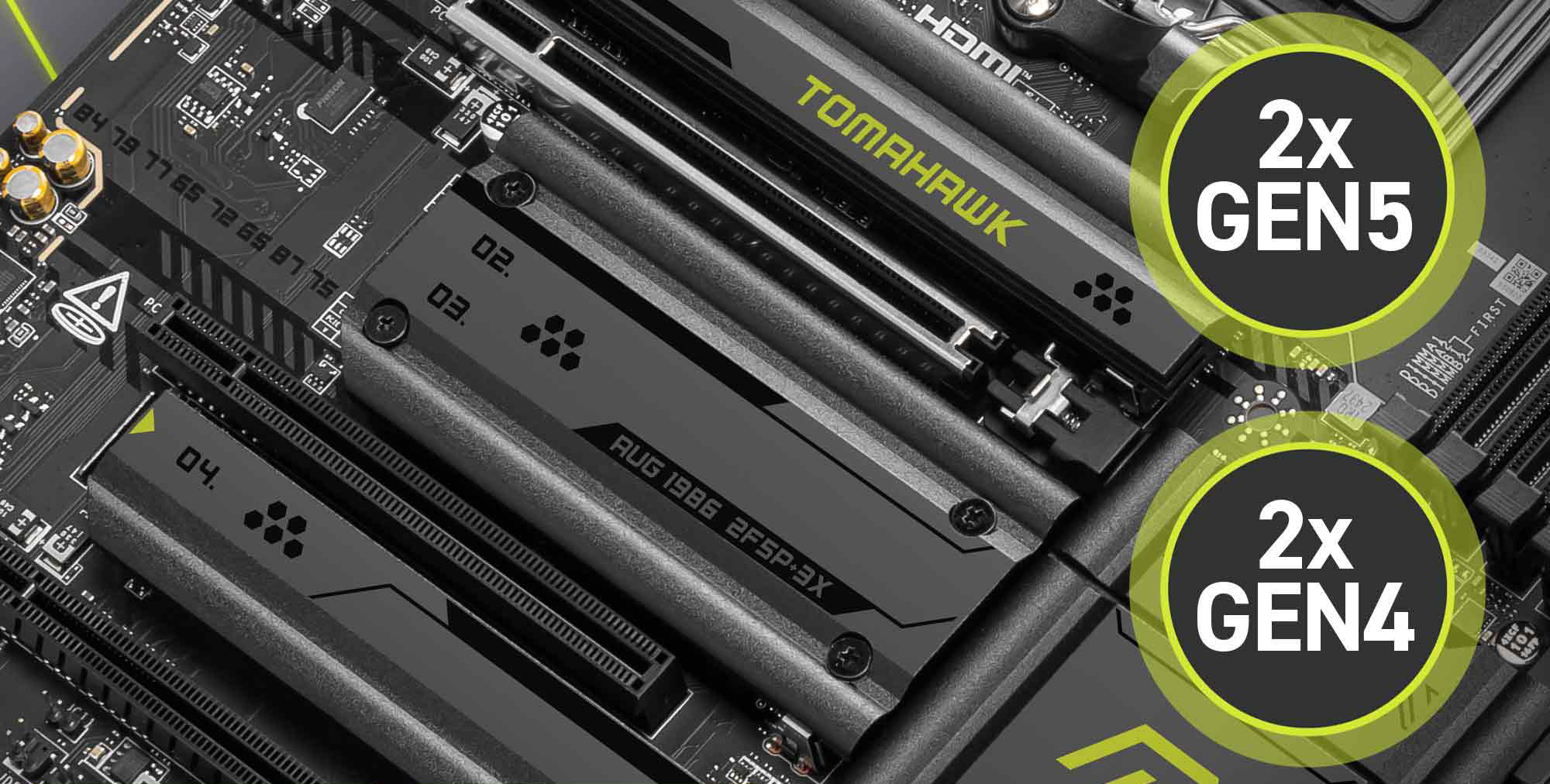

• 2 x Gen5 x4 128Gbps slots*/** (one with double-sided M.2 Shield Frozr)
• 2 x Gen4 x4 64Gbps slots**

* M2_1 & M2_4 equipes with EZ M.2 Shield Frozr II

** M2_2 & M2_3 equipes with M.2 Shield Frozr
