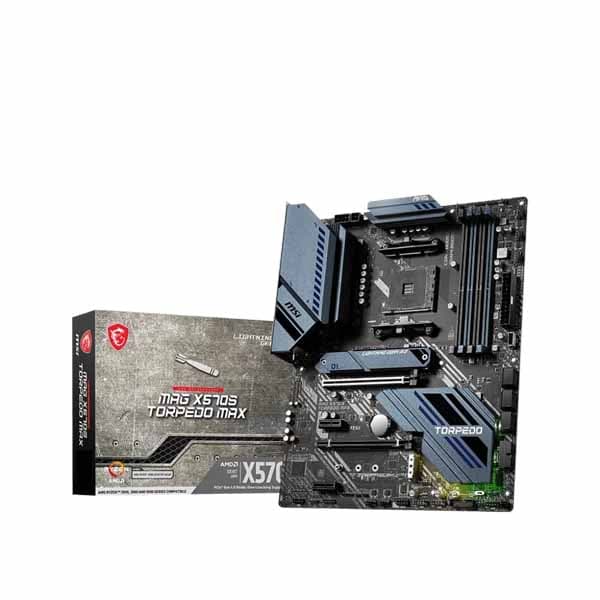

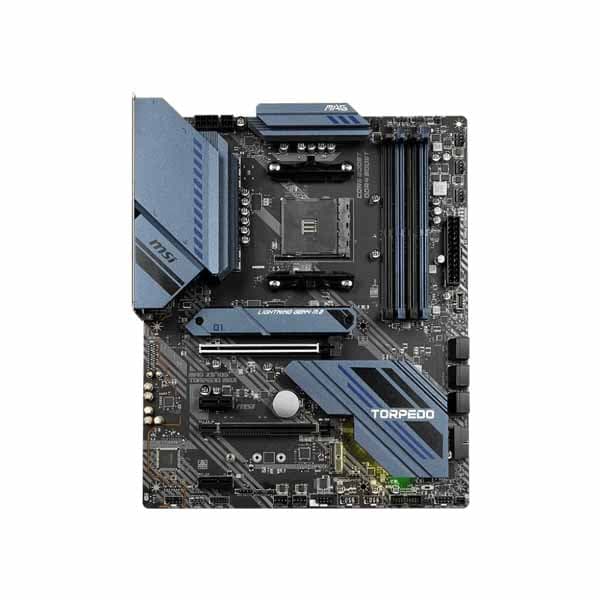

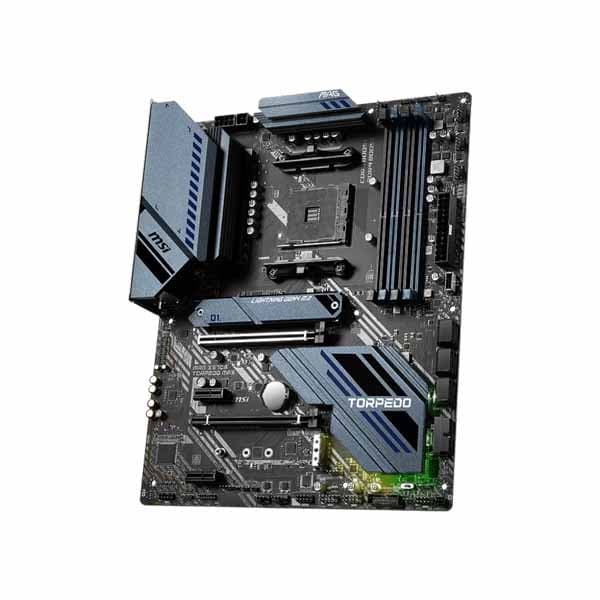

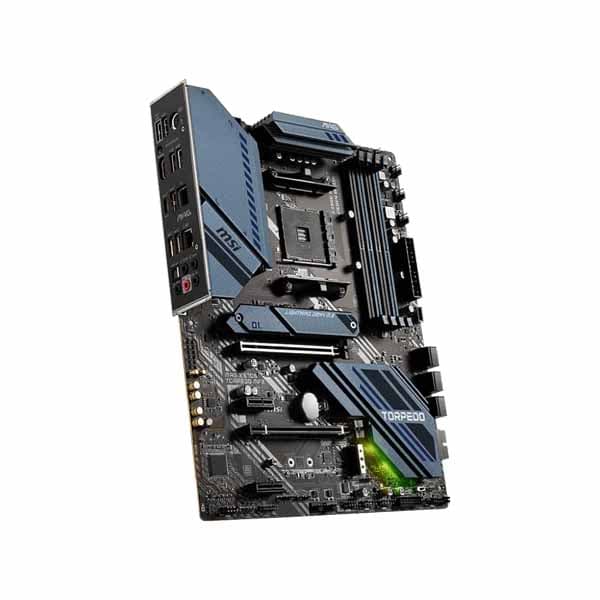

Ryzen 5000 Series Ready

The MSI MAG X570S Torpedo MAX motherboard supports AMD Ryzen 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series, 3000 G-Series, 2000 Series and 2000 G-Series desktop processors

• Form Factor: ATX
• Socket Type: AMD AM4
• Chipset: AMD X570

12 + 2 Mirrored Power Arrangement

MAG X570S Torpedo Comes With its 4+8 pin power connectors (60A) and exclusive Core Boost technology, the MAG X570S TORPEDO MAX is able to sustain heavy CPU power loads to support system-demanding game settings:

1. 2-Phase SoC Power
2. 12-Phase Mirrored Power Arrangement
3. Digital PWM IC

Integrated Cooling Features

VRM Cooling: Features dual thermal dissipation pads (7 W/mK) and 2 aluminium heatsinks (1 extended).

PCB Cooling: Premium 6-layer printed circuit design with 2 oz. thickened copper improves heat dissipation & reliability.

Chipset Cooling: New & enlarged passively-cooled chipset heatsink generates zero noise.

System Cooling: Connect and synchronize cooling with strategically placed pin-headers - including a dedicated pump-fan header.

2 x PCI-e 4.0 x16 GPU Slots

MAG X570S Torpedo comes with PCI Express Steel Armor slots are secured to the motherboard with extra solder points to support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor also shields the point of contact from electromagnetic interference:

• 1 x PCI-e 4.0/3.0 x16 slots with Steel Armor
• 1 x PCI-e 4.0/3.0 x16 slot (CrossFire supported)
• 2 x PCI-e 3.0 x1 slots

2 x M.2 Gen4 Connectors

The MAG X570S Torpedo MAX motherboard features MSI's latest Lightning Gen 4 M.2 ports which represent the fastest onboard storage solution available with up to 64 Gb/s transfer speeds.*

*M.2 specifications may vary depending on the CPU installed.

M.2 Shield Frozr

Even the world’s fastest SSDs will automatically slow if thermal throttling firmware detects excessively high temperatures.

M.2 Shield Frozr is MSI's most advanced thermal solution, offering the best possible protection to ensure maximum SSD transfer speed performance.

4 x DIMMs (5100MHz OC)

DDR 4 Boost: A fully-isolated DDR circuit delivers pure data signals for optimal gaming and overclocking performance.

A-XMP profiles in MSI BIOS are MSI OC LAB tested and can be easily enabled with auto power settings for optimized memory speed and stability.

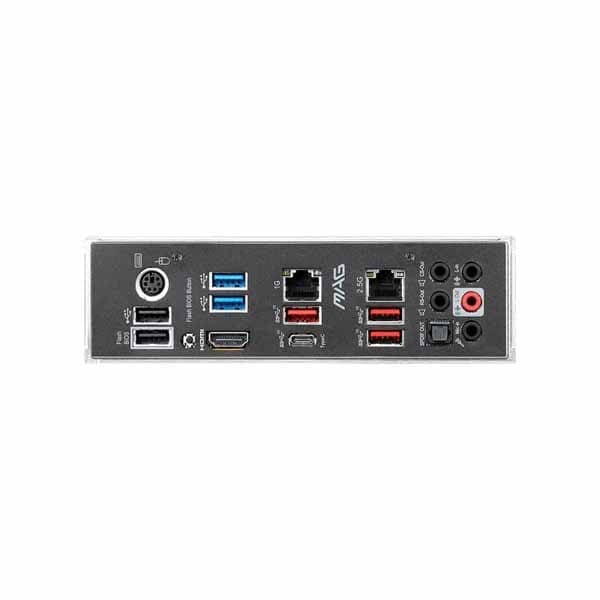

Dual LAN Connectivity

2.5Gb/s + 1Gb/s LANs: Realtek 8125B 2.5Gb/s + RTL8111H 1Gb/s ethernet LANs, with LAN manager, delivers a premium network gaming experience.

HD Audio: 7.1-Channel High Definition Audio augmented with Audio Boost 5 processor for maximum immersion.
