Supports Intel Core 11th Gen Processors

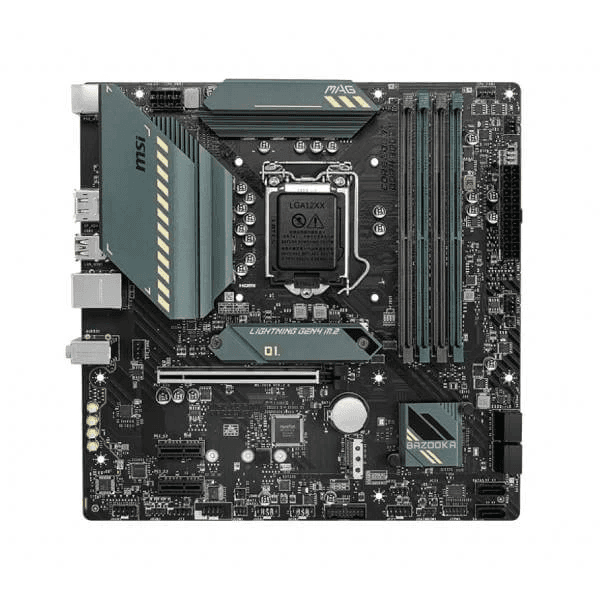

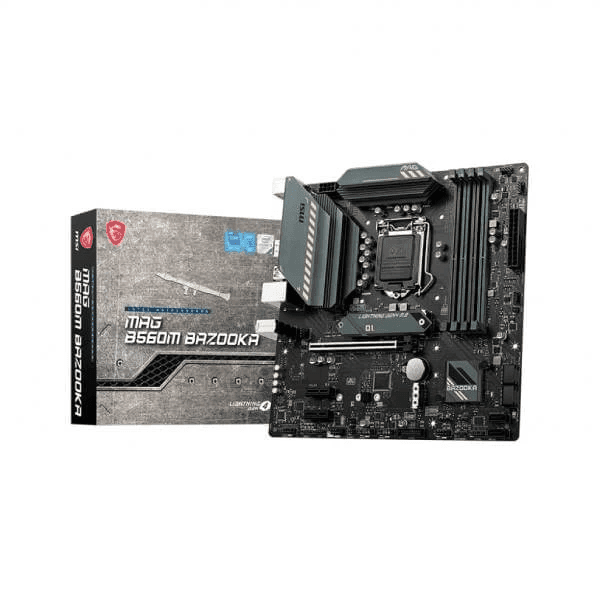

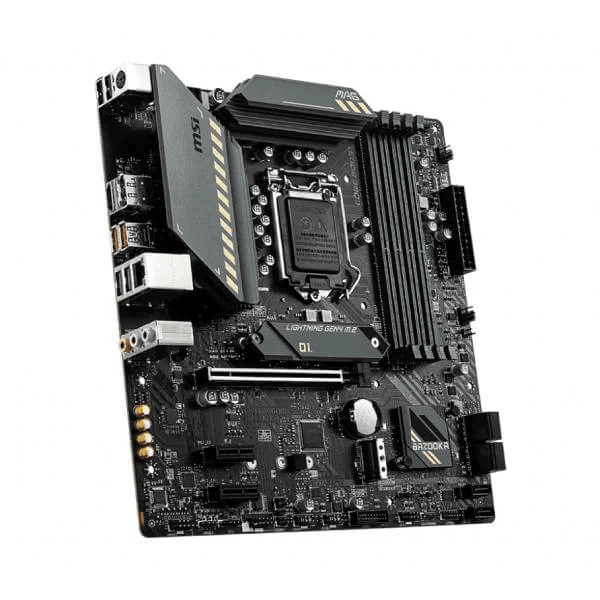

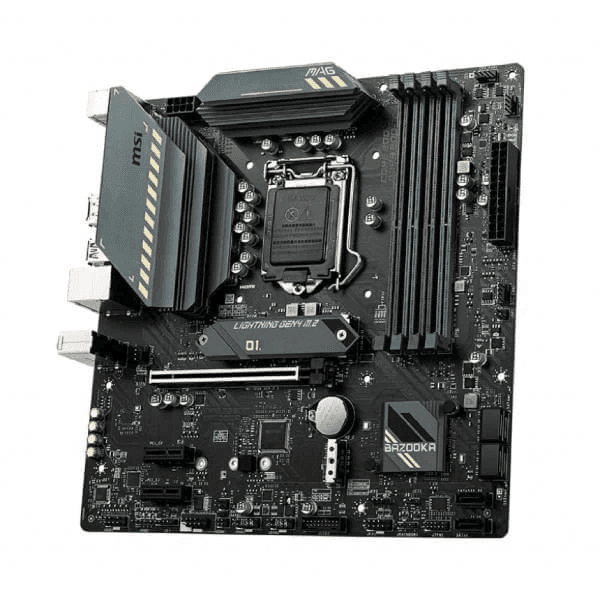

The MAG B560M BAZOOKA motherboard supports 11th Gen Intel Core, 10th Gen Intel Core, Pentium Gold, and Celeron processors.

• Form Factor: Micro-ATX
• Socket Type: LGA 1200
• Chipset: Intel B560

5+2+1 Duet Rail Power System

With its 8 pin power connector and exclusive Core Boost technology, the MAG B560M BAZOOKA is able to sustain heavy CPU power loads to support system-demanding game settings:

1. 2-Phase GT Power
2. 1-Phase SA Power
3. 5 Duet Rail CPU Power System
4. Digital PWM IC

Integrated Cooling Features

VRM Cooling: Features an extended heatsink and 7W/mK thermal pads.

PCB Cooling: Premium 6-layer printed circuit design with 2 oz. thickened copper improves heat dissipation & reliability.

System Cooling: Connect and synchronize cooling with strategically placed pin-headers - including a dedicated pump-fan header.

Fortified PCI-e 4.0 x16

MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points to support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor also shields the point of contact from electromagnetic interference:

• 1 x PCI-e 4.0/3.0 x16 slot (with Steel Armor)

Gen4 & Gen3 M.2 Connectors

The MAG B560M BAZOOKA motherboard features MSI's latest M.2 slots (Intel Optane supported):

• 1 x *Gen4 x4 64Gb/s (auto-syncs to either 10th or 11th Gen CPU's)
• 2 x Gen3 x4 32Gb/s slots

*M.2 specifications may vary depending on the CPU installed.

M.2 Shield Frozr

Even the world’s fastest SSDs will automatically slow if thermal throttling firmware detects excessively high temperatures.

M.2 Shield Frozr is MSI's most advanced thermal solution, offering the best possible protection to ensure maximum SSD transfer speed performance.

4 x DDR4 Dual Channel (5066 MHz OC)

DDR4 Boost: A fully-isolated DDR circuit delivers pure data signals for optimal gaming and overclocking performance.

XMP profiles in MSI BIOS are tested by MSI OC LAB and can be easily enabled with auto power settings for optimized memory speed and stability.

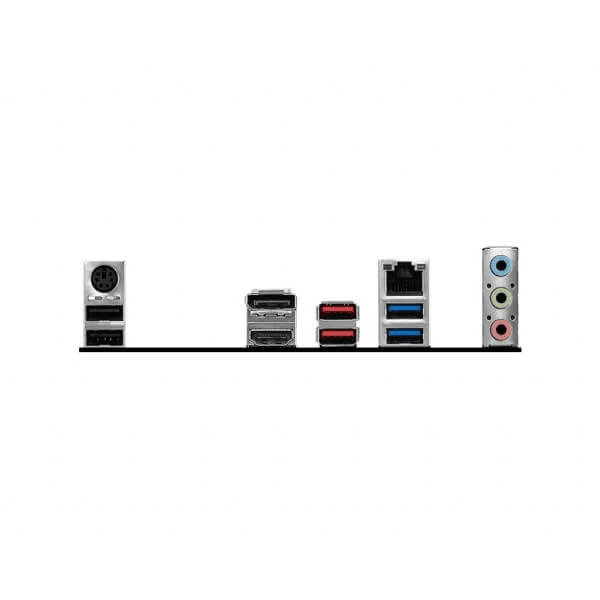

2.5G LAN Controller

2.5G LAN: A 2.5Gbps LAN controller delivers a premium network gaming experience.

USB 3.2 Gen 2: Connect to devices and transfer files at high bandwidth rates: 10Gb/s.

HD Audio: 7.1-Channel High Definition Audio.
