Feature

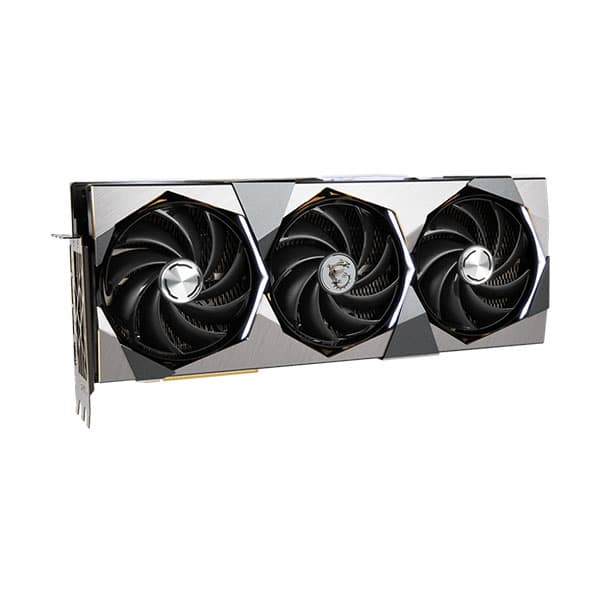

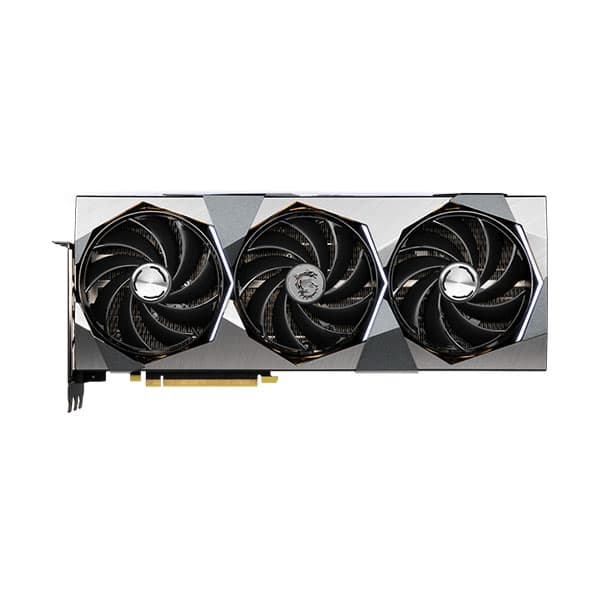

Get equipped for stellar gaming and creating with the NVIDIA
® MSI GeForce RTX 4070 Ti SUPRIM X. It’s built with the ultra-efficient NVIDIA Ada Lovelace architecture. Experience fast ray tracing, AI-accelerated performance with DLSS 3, new ways to create, and much more.
Boost Clock / Memory Speed
- Extreme Performance: 2790 MHz (MSI Center)
Boost: 2775 MHz (GAMING & SILENT Mode)
21 Gbps
- 12GB GDDR6X

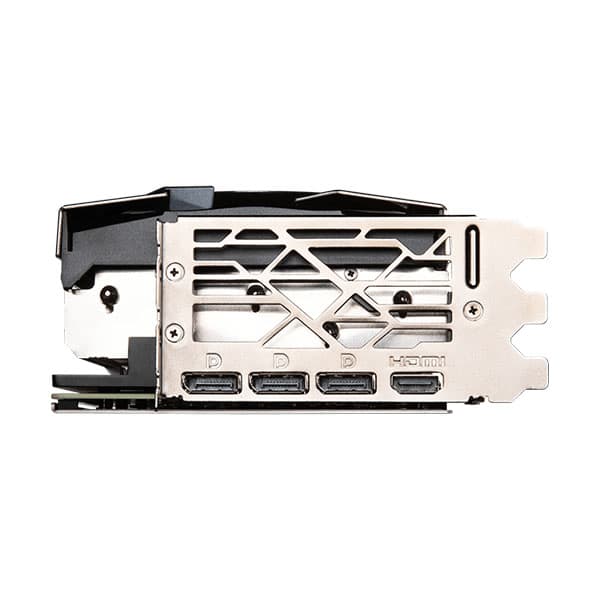

- DisplayPort x 3 (v1.4a)
HDMI™ x 1 (Supports 4K@120Hz HDR, 8K@60Hz HDR, and Variable Refresh Rate as specified in HDMI 2.1a)
TRI FROZR 3S Thermal Design
- TORX Fan 5.0: Fan blades linked by ring arcs and a fan cowl work together to stabilize and maintain high-pressure airflow.
- COPPER BASEPLATE: The CNC machined nickel-plated copper base captures heat from the GPU and the memory then rapidly transfers it to Core Pipes.
- Core Pipe: Precision-machined heat pipes ensure max contact to the GPU baseplate and spread heat along the full length of the heatsink.
- Airflow Control: Sections of different heatsink fins disrupt unwanted airflow harmonics and reduce noise.
Dual BIOS
- RTX 4070 Ti SUPRIM X has Dual BIOS gives you the choice to prioritize full performance in GAMING mode or low noise in SILENT mode.
MSI Center
- The exclusive MSI Center software lets you monitor, tweak and optimize MSI products in real-time.
Mystic Light
- Controls lighting for both MSI and compatible third-party RGB products.
SUPRIM and its logo concept are inpired by diamond crystals and geometry.
A celebration of decades of MSI graphics card mastery, SUPRIM is crafted with qualities that evoke prestige.
High-quality materials and construction are emphasized by the geometry of points, lines, and planes.
CHANGE THE GAME
Ascend to a superior experience with SUPRIM. See, hear, and feel a profoundly elevated graphics card built with high-quality materials and assembled with enthusiast features.
Design
01. SHARP LOOKS
The second iteration of SUPRIM inherits the exterior design philosophy of its predecessor, with a brushed metal cover, octagon-shaped fan cutouts and chevrons around each fan.
02. POLISHED EDGES
Beveled edges are polished several times with a diamond-tipped cutter to achieve a mirror-finish. Clean sharp lines emphasize the metal construction to sight and touch.
03. FINISHING TOUCHES
The motif of straight lines continue around the fans with octagonal cutouts featuring polished 45-degree beveled edges.
TRI-FROZR 3S THERMAL DESIGN
Upgraded fans, airflow control, and other thermal innovation make TRI-FROZR 3S the best air-cooling solution yet from MSI.
KEEPING THE CORE COOL
CORE PIPE
Core Pipes are precision-crafted to make maximum use of the available space. A squared section of heat pipes fully touch the GPU baseplate to then spread heat along the full length of the heatsink.
AIRFLOW CONTROL
Sections of different heatsink fins disrupt unwanted airflow harmonics and reduce noise.
FILLED FINS
Updated heat pipe pathing has allowed more space for additional heatsink fins
WAVE-CURVED 3.0
Additional efficiency is gained by adjusting the size of the wave edges under the fan motor and other spots where there is less airflow
AIR ANTEGRADE FIN
Fins with a V-shaped cutout are located at the airflow passthrough to improve flow efficiency. Optimizing the inclination angle and increasing the wave notch shapes the air resistance towards the center, pushing out warm air faster like a nozzle.

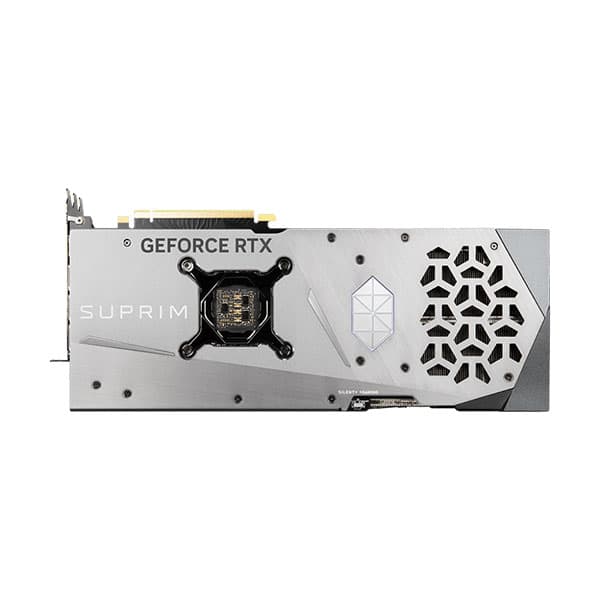

METAL BACKPLATE
Thermal pads under the sturdy metal backplate provide additional cooling while the flow-through ventilation reduces trapped heat.
ZERO FROZR
The fans completely stop when temperatures are relatively low, eliminating all noise when active cooling is not needed. The fans will automatically start spinning again when the heat is on during gaming.
DOUBLE-BALL BEARING
Two sets of durable ball bearings spin the TORX FANs for years of intense and lengthy gaming sessions.
PCB and Reinforcement
High-Efficiency CarbonyI Inductors (HCI)
Manufacturing and material improvements to our choke parts have culminated as High-Efficiency Carbonyl Inductors (HCI.) One-piece molding allows this design to operate with less choke noise and better electric filtering.
DrMos
DrMOS power stage solutions provide great efficiency with low power loss and enhanced voltage controls.
Dual BIOS
Dual BIOS gives you the choice to prioritize full performance in GAMING mode or low noise in SILENT mode.
Hardened Defenses - Fuse
Additional fuses built into the custom PCB provide additional safeguards against electrical damage.
Anti-Bending – Die Casting
RELENTLESS DEFENSE
A die-cast anti-bending plate reinforces the whole card while thermal pads allow cooling to reach critical component underneath.
YOUR SUPPORT CHARACTER
A bundled support stand can be attached to the PC case to hold up the graphics card.
