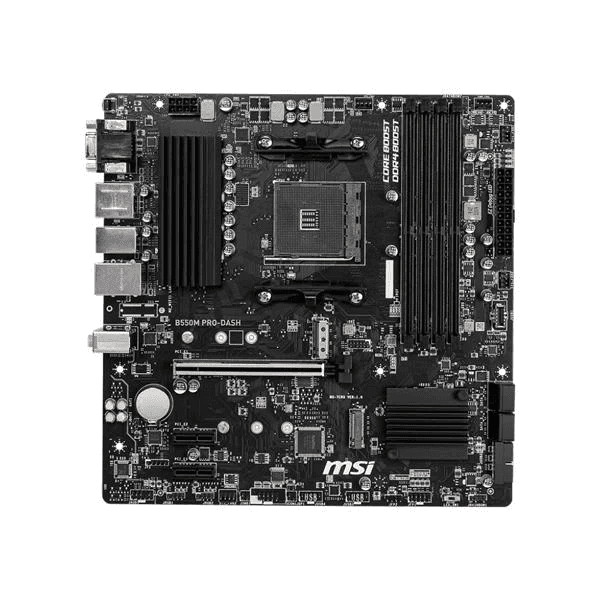

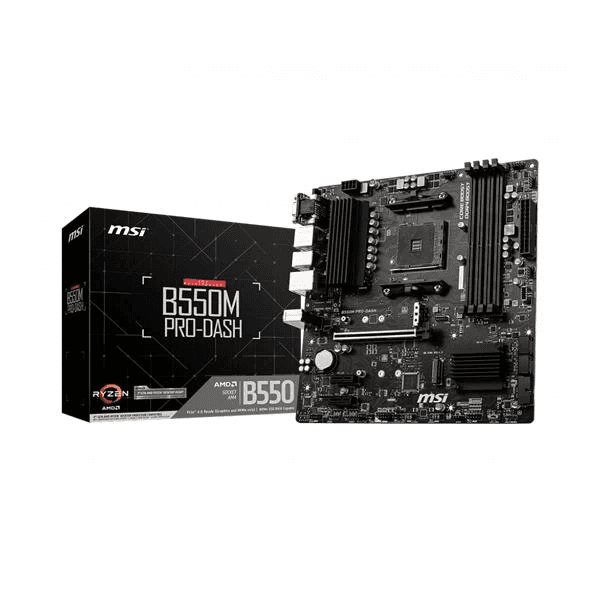

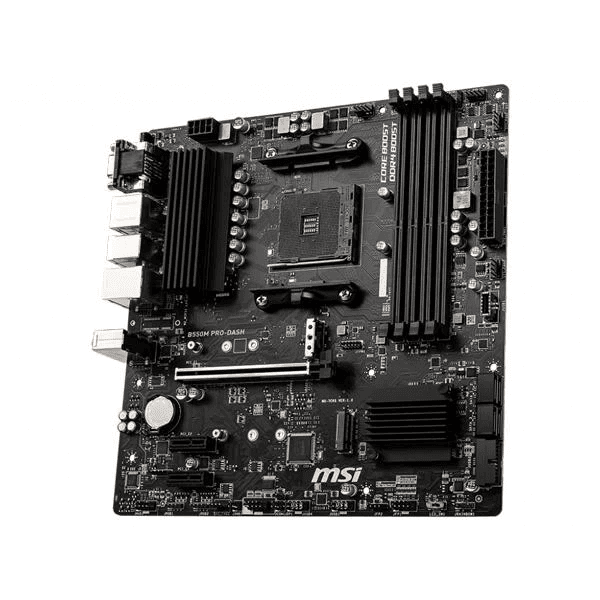

AMD B550M PRO-DASH (Ryzen AM4) micro-ATX Motherboard, With Dash Gigabit Ethernet, M.2 Slot, DDR4 4400 MHz, USB 3.2 Gen 1 Type C and A

Important Notice :

• BIOS Update May Be Required With This Motherboard in order to support the Latest Generation Ryzen Processor (Upto 5th Gen Ryzen).
• The Maximum Supported Memory Speed Varies with The Generation of Ryzen Processor You are Using With it.
• For Additional Information Regarding Compatibility, Please Check Within the Manufacturers Website

Features

• B550M PRO-DASH Supports AMD Ryzen™ 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen™ 5 3400G & Ryzen™ 3 3200G) and AMD Ryzen™ 4000 G-Series desktop processors
• B550M PRO-DASH Supports DDR4 Memory, up to 4400(OC) MHz
• DASH LAN: supports DMTF’s client management standard for secure out-of-band and remote management.
• Lightning Fast Experience: PCIe 4.0, Lightning Gen4 x4 M.2
• Premium Thermal Solution: 7W/mK pad, additional choke thermal pad and M.2 Shield Frozr are built for high performance system and non-stop works
• Stablility: Core Boost, Digital PWM IC, 2oz Thickened Copper PCB, DDR4 Boost
• Reliability: over 7000+ validation hours industrial level test
• Dragon Center: A brand new software which integrates all MSI exclusive tools with user friendly user interface.

LIGHTNING GEN 4 SOLUTION The latest Gen4 PCI-E and M.2 solution with up to 64GB/s bandwidth for maximum transfer speed. PCIe 4.0 maintains both backward and forward compatibility with older and newer specifications.	CORE BOOST B550M PRO-DASH has Core Boost technology combines MSI’s premium layout and digital power design which allows for faster and undistorted current delivery to the CPU at pin-point precision. Not only supporting multi-core CPU, but creating the perfect conditions for your CPU overclocking.	PCB WITH 2OZ THICKENED COPPER An enhanced PCB design with 2oz thickened copper increases conductivity, improving heat dissipation and performance reliability especially during overclocking.

STEEL ARMOR Steel Armor has more solder points on the PCB for more strength and protects the PCI-Express signals against electromagnetic interference for a stutter-free user experience.	NETWORK WITH HIGH SECURITY B550M PRO-DASH has Equips Realtek 8111EPV Gigabit LAN, a security network solution combines a triple-speed IEEE 802.3 compatible Media Access Controller (MAC) with a triple-speed Ethernet transceiver and PCI Express bus controller. With state-of-the-art DSP technology and mixed-mode signal technology, the RTL8111EPV offers functions such as Crossover Detection and Auto-Correction, polarity correction, adaptive equalization, cross-talk cancellation, echo cancellation, timing recovery, and error correction are implemented to provide robust transmission and reception capability at high speeds.	B550M PRO-DASH Experience new generation of the B550M PRO-DASH motherboard powered by 3rd Gen AMD 3000 series AM4 processors. Outperform your system's capacity with Lightning Gen 4 solution. Exclusive DDR4 Boost and Core Boost, created to keep you one step ahead of the competition. 7W/mK level thermal & choke pad with 2oz thickened copper help your PC remain cool, high performing and reliable.
