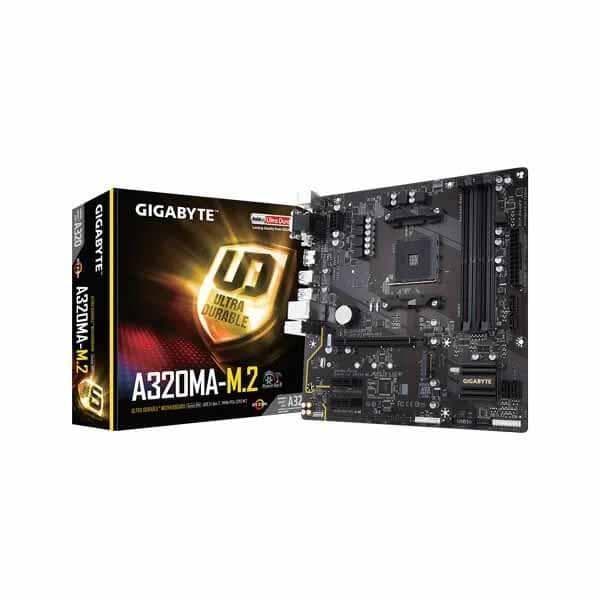

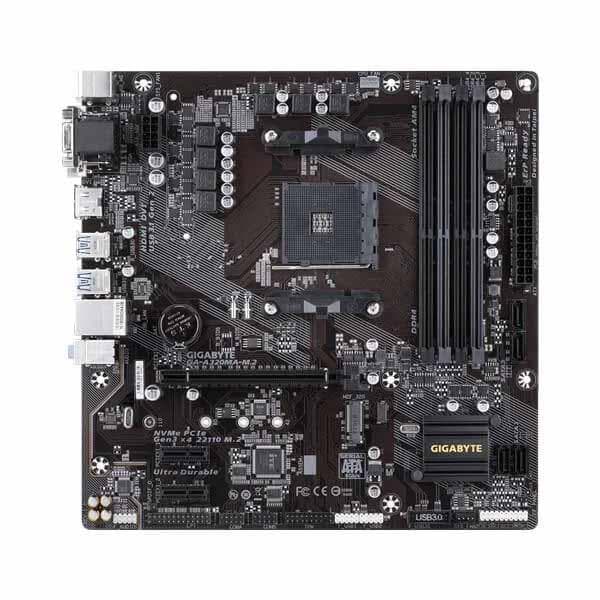

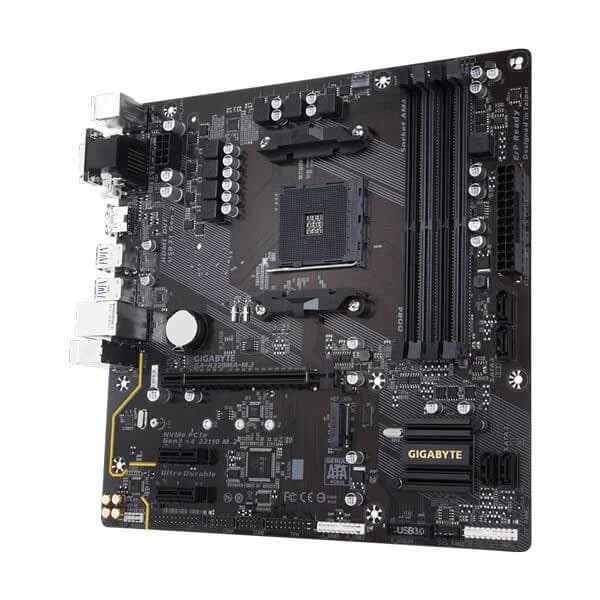

Gigabyte GA-A320MA-M.2 Motherboard

Features

• SupportsAMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation/ 7th Generation A-series/ Athlon X4 Processors
• Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
• Fast USB 3.1 Gen 2 with USB Type-A
• Ultra-Fast PCIe Gen3 x4 M.2 with PCIe NVMe & SATA mode support
• High-Quality Audio Capacitors and Audio Noise Guard with LED Trace Path Lighting
• Realtek® Gigabit LAN with cFosSpeed Internet Accelerator Software
• Smart Fan 5 features 5 Temperature Sensors and 3 Hybrid Fan Headers
• GIGABYTE™ UEFI BIOS
• All New GIGABYTE™™ APP Center, Simple, and Easy Use

Meet AMD RYZEN ™ 3000 Series

Smart Fan 5

With Smart Fan 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM and Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly.

All Hybrid Fan Pin Headers

• All Hybrid Fan Headers can automatically detect the type of cooling device whether it be fan or pump with different PWM or Voltage mode. • Supports up to 2 amps with built-in overcurrent protection—a must for high-end high current fans.

New Smart Fan 5 Software

Interoperable Sensors and Fans Each fan can be customized to operate at different speeds according to any defined temperature source input (except the CPU fan).

Fan Curve Customize fan curves based on specific temperatures with the intuitive graphical UI.

Choose from different modes, Quiet to Full Speed, to match your system usage scenario. For each fan or pump, you can use the intuitive fan curve to define trigger thresholds and corresponding fan speeds.

Enhanced BIOS Interface

The enhanced BIOS interface also has the advanced features seen in the Smart Fan 5 UI, such as: the ability to set triggers based on different temperature sensors on the board, fan curve definition and the temperature interval setting, which can prevent fan rotation noise caused by sudden temperature change—all without having to load Windows.

Realtek GbE LAN with cFosSpeed Internet Accelerator Software

Realtek Gigabit LAN features cFosSpeed, a network traffic management application which helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments.

Fast Onboard Storage with NVMe PCIe Gen3 x4 110mm M.2 (Up to 32 Gb/s)

GIGABYTE M.2 solution offers considerably faster storage performance and support for both PCIe and SATA interfaces for M.2 SSD devices.

Fast USB 3.1 Gen 2 Solution

The latest USB 3.1 Gen 2 offers staggering 10Gb/s transfer speeds. 2x faster than USB 3.1 Gen 1 along with backwards compatibility with existing USB devices.

Anti-Sulfur Resistor Design

Sulfur compounds in the air can penetrate tiny onboard resistors creating chemical change and causing these resistors to open or short. If either of these occurs the motherboard will fail to function. By equipping resistors with an Anti-Sulfur Design GIGABYTE gives Ultra Durable Motherboards a whole new meaning.

High Quality Onboard Audio Design

Delivers high quality sound resolution and sound expansion to create the most realistic sound effects for professional gamers.

Humidity Protection Glass Fabric PCB

There is nothing more harmful to the longevity of your PC than moisture, and most parts of the world experience moisture in the air as humidity at some point during the year. GIGABYTE motherboards have been designed to make sure that humidity is never an issue, incorporating a new Glass Fabric PCB technology that repels moisture caused by humid and damp conditions. Glass Fabric PCB technology uses a new PCB material which reduces the amount of space between the fiber weave, making it much more difficult for moisture to penetrate compared to traditional motherboard PCBs. This offers much better protection from short circuit and system malfunction caused by humid and damp conditions.

High Temperature Protection Lower RDS(on) MOSFETs Design

GIGABYTE motherboards use Low RDS(on) MOSFETs which reduce energy wastage through unnecessary residual heat dissipation. This all amounts to tangible energy savings which are beneficial for both end-users and the environment without impacting system performance.

Refreshed BIOS Easy, Smart, and Friendly

The BIOS is essential for users during initial setup to allow for the most optimal settings. With a new GUI and easier to use functionalities, GIGABYTE has been able to reinvent the BIOS to give users a better experience while setting up their new system.

GIGABYTE APP Center

The GIGABYTE APP Center gives you easy access to a wealth of GIGABYTE apps that help you get the most from your GIGABYTE motherboard. Using a simple, unified user interface, GIGABYTE APP Center allows you to easily launch all GIGABYTE apps installed on your system, check related updates online, and download the latest apps, drivers, and BIOS.

EasyTune™

GIGABYTE's EasyTune™ is a simple and easy-to-use interface that allows users to fine-tune their system settings or adjust system and memory clocks and voltages in a Windows environment. With Smart Quick Boost, one click is all it takes to automatically overclock your system, giving an added performance boost when you need it the most.

System Information Viewer

GIGABYTE System Information Viewer is a central location that gives you access to your current system status. Monitor components such as the clocks and processor, set your preferred fan speed profile, create alerts when temperatures get too high or record your system’s behavior; these are the possibilities of the System Information Viewer.

@BIOS

The GIGABYTE @BIOS app allows you to update your system’s BIOS from within Windows using a simple and slick graphical user interface. @BIOS can automatically download the latest version from the GIGABYTE servers or you can update your BIOS from a file on your computer. @BIOS also allows you to save your current BIOS to a file, recover your previous BIOS from an image and backup your BIOS to an image.

3D OSD

3D OSD automatically detects and displays your system information during games, allowing you to easily get a hold of your system information without switching between screens.

High Definition Digital Outputs

Enjoy true HD display capability using the most commonly integrated digital output technologies on today’s HD displays and TVs.

4K Ultra HD Support

4K resolution is the next technological milestone in high-definition content delivery, utilizing approximately 4,000 pixels on the horizontal axis, more than four times today's standard HD pixel density. GIGABYTE motherboards provide native 4K support with integrated AMD Radeon^® Graphics via HDMI.

HDMI^™ - The Next Generation Multimedia Interface

HDMI™ is a High-Definition Multimedia Interface which provides up to 5Gb/s video transmitting bandwidth and 8-channel high quality audio all through a single cable. Able to transmit superior, uncompressed digital video and audio, HDMI™ ensures the crispest rendering of digital content up to 1080p without the quality losses associated with analog interfaces and their digital-to-analog conversion. In addition, HDMI™ is compatible with HDCP (High-bandwidth Digital Content Protection), allowing the playback of Blu-ray/HD DVD and other protected media content.

XSplit Gamecaster + Broadcaster: Cast Your Game Anytime, Anywhere

Now set up your stage and share the greatest gaming moments with XSplit Gamecaster + Broadcaster! Fully optimized social media integration is ready for real-time chats—keeping you notified yet focused in the game. It takes just one click to stream your gameplay to Twitch. Host your game like a pro!

TriDef^® SmartCam | Custom Stream Modding

To facilitate being the full streaming solution each GIGABYTE motherboard includes TriDef^® SmartCam software, you are now able to remove backgrounds without the hassle of using a green screen. Through the SmartCam application you can now apply live filters, and fully control your background, not only while streaming, but also through other video applications such as Skype.
