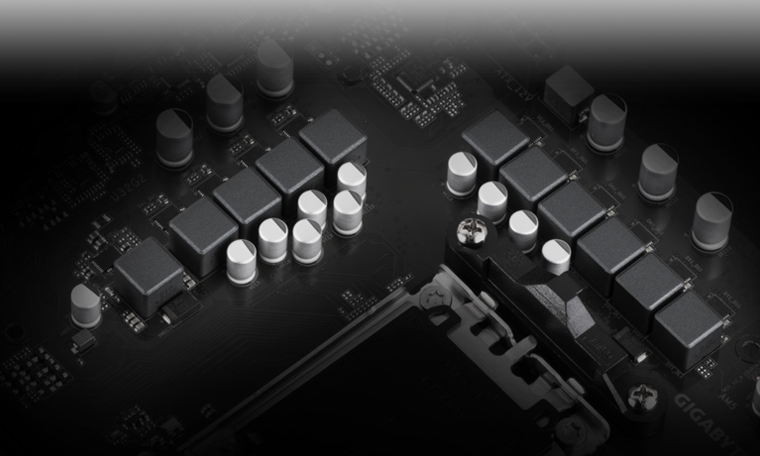

8+2+2 Phases Digital VRM Solution
GIGABYTE UD series motherboards use a 8+2+2 phases digital PWM design to support AMD's new generation CPU by offering incredible precision in delivering power to the motherboard's most power-hungry and energy-sensitive components as well as delivering enhanced system performance and ultimate hardware scalability.
DDR5 EXPO & XMP Overclocking Up to 8000 and Beyond*
GIGABYTE is offering a tested and proven platform that the memory overclocking capability is able up to 8000 and beyond. All users need to do for achieving this extreme memory performance boost is to ensure that their DDR5 memory modules are AMD EXPO™/ Intel® XMP capable, the EXPO/XMP function is activated and enabled on their GIGABYTE motherboard.
Unlock DDR5 Voltage
GIGABYTE Exclusive DDR5 Circuit Design

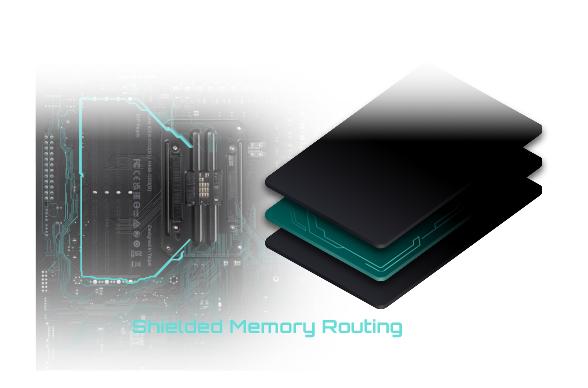

Shielded Memory Routing
Note: The picture is for reference and may vary by mode.

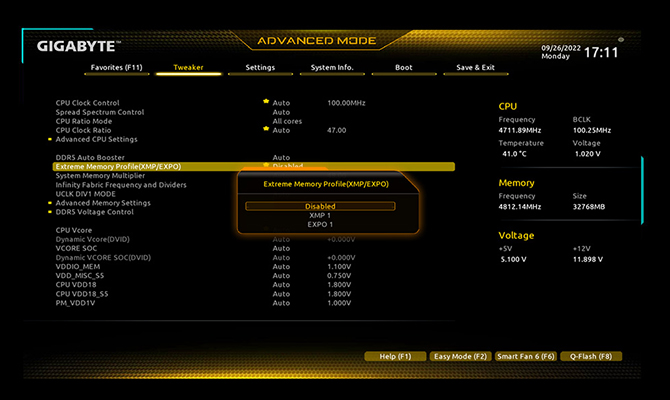

EXPO and XMP Dual Support

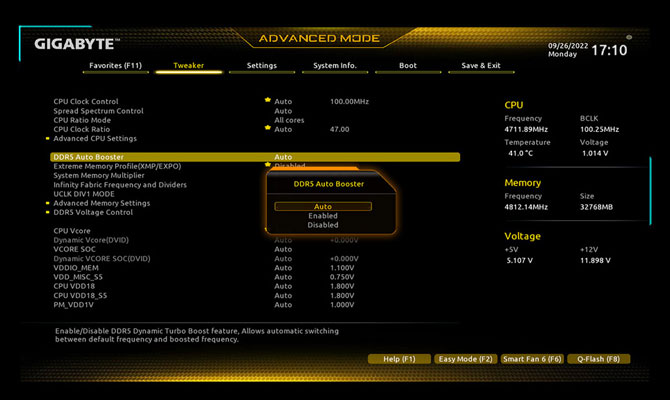

DDR5 Auto Booster
Automatically Boost the Native DDR5 frequency to 5000MHz while the system is under heavy loading by a single click.

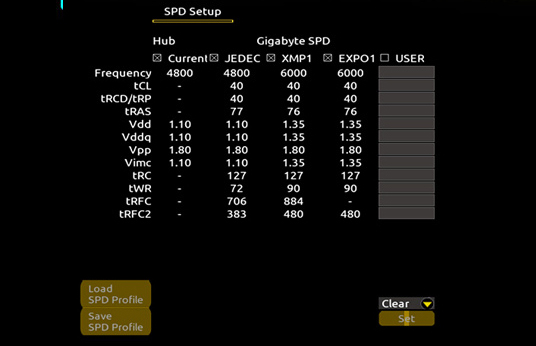

AMD EXPO™ and Intel® XMP 3.0 User Profile
- SPD Re-defined or retrieve from database - Performance Simulation - Save/Load Profile - Overclocked Performance - Profile Clearance

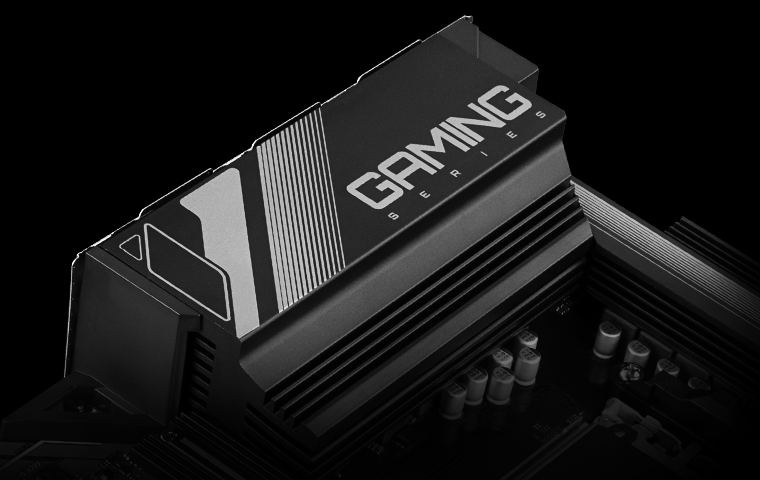

Fully Covered MOSFET Heatsink

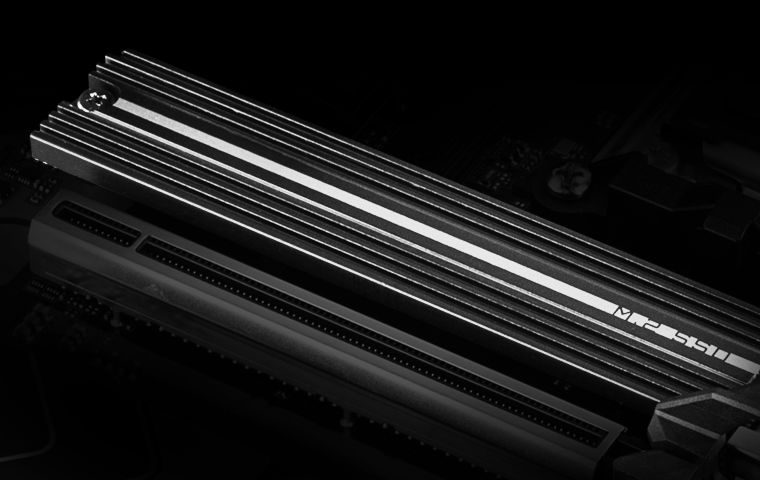

M.2 Thermal Guard
The M.2 Thermal Guard prevents throttling and bottlenecks from high speed M.2 SSDs as it helps to dissipate heat before it becomes an issue.

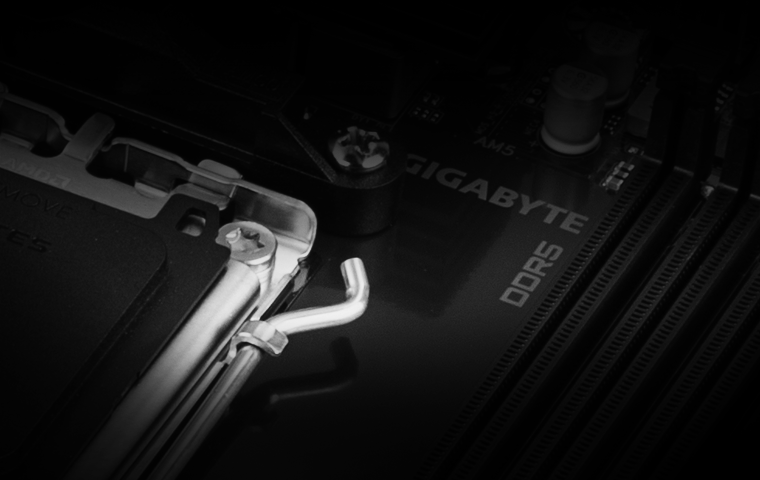

6-Layer & 2X Copper PCB
2X copper PCBs design effectively lower the component temperature by its high thermal conductivity and low impedance.

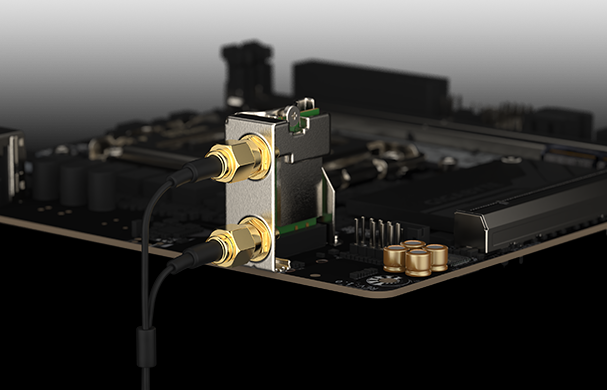

The ultimate connectivity with blazing data-transfer speeds through the next generation network and storage.
* Photo for reference only.
* Photo for reference only.
* Photo for reference only.
Gigabyte
Black
4.71933E+12
ATX
AMD
Normal
DDR5
AM5
3 Years
B650 GAMING X AX V2
1 kg
N/A
