Feature
- Server Cabinet
- AIO Compatible
- Ultimate Storage Flexibility
- Type-C
- Pre-Installed 120mm Fans
- Rear 140mm Fan
- Enhanced Air Flow
- Silent Design
- Bottom Dust Filter
- Cable Management

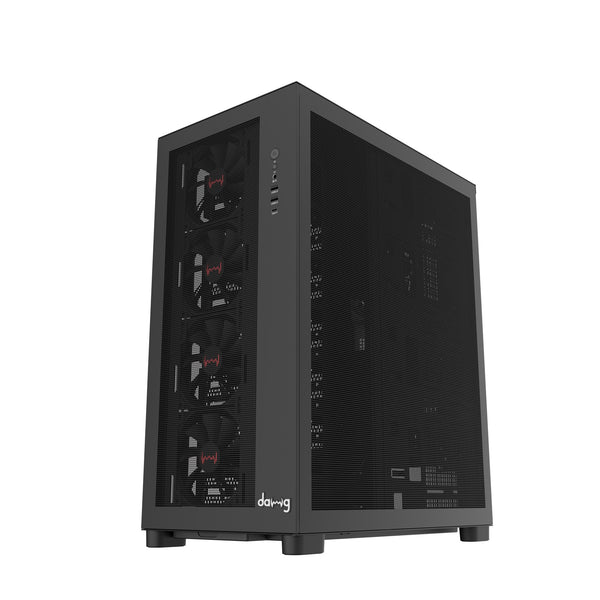

Dawg Y 909 Full Tower Chassis supports EATX / ATX, features 2x USB 3.0, Type-C port, HD Audio Port, enhanced airflow, silent design, 11 PCIe expansion, Type-C charging, room to install AIO coolers up to 420mm in the side and 360mm on the top, 180mm CPU cooler, 300mm GPU length, 250mm bottom PSU, pre-installed black fans - rear 140mm fan, top 4x 120mm fans, and space for optional cooling fans. Comes with a bottom magnetic dust filter. A server cabinet and a storage facility for cable management.
More Specs:
- Model: Y 909
- Form Factor: Full Tower
- Motherboard: EATX | ATX
- I/O Ports: Type-C | USB 3.0 x 2 | Headphone + MIC
- Drive:
7 Hard Disk Racks
– Config 1: HDD x 14
– Config 2: HDD x 7 + SSD x 7
Back panel Mount
– Config 1: HDD x 3 + SSD x 1 + ( HDD x 1 / SSD x 2 )
– Config 2: HDD x 2 + SSD x 2 + ( HDD x 1 / SSD x 2 )
- Fan Type: BLACK FANS
- Fans Included : 5 nos
- Cooling Fans:
– Front : 120mm x 4 | 140mm x 3
– Top: None | 120mm x 3 | 140mm x 3
– Bottom : None | 120mm x 2
– Rear: 140mm x 1 | 120mm x 1
- AIO SUPPORT:
– Front : None | Upto 420mm
– Top : None | Upto 360mm
- CPU Cooler Height: 180 mm
- GPU Length: 300 mm
- PSU: Bottom, 250 mm
- Dust Filter: Bottom Magnetic
- PCIe Expansio: 11
- Dimension (WxDxH): 25.8 x 45 x 56.8 cm
- Weight: 11.1 kg
