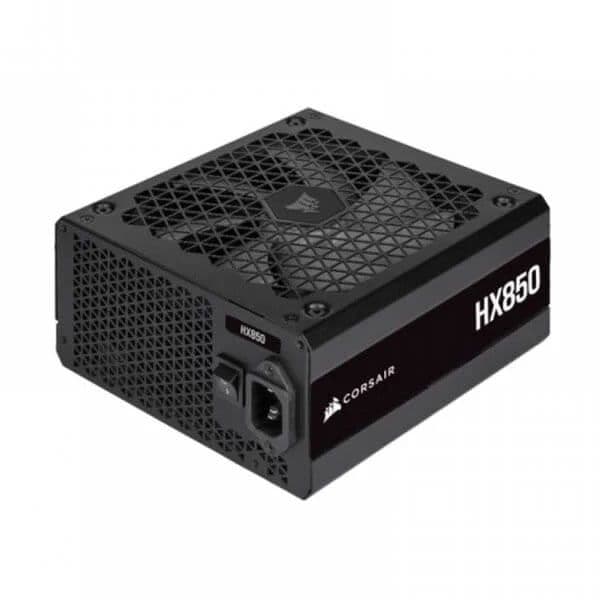

Corsair HX850 850W 80 Plus Platinum High Performance Power Supply

Features:

• CORSAIR HX850  Fully Modular Cabling: Only connect the cables your system needs, making clean and tidy builds easier.
• Triple EPS12V Connectors: For full compatibility with modern graphics cards and motherboards.

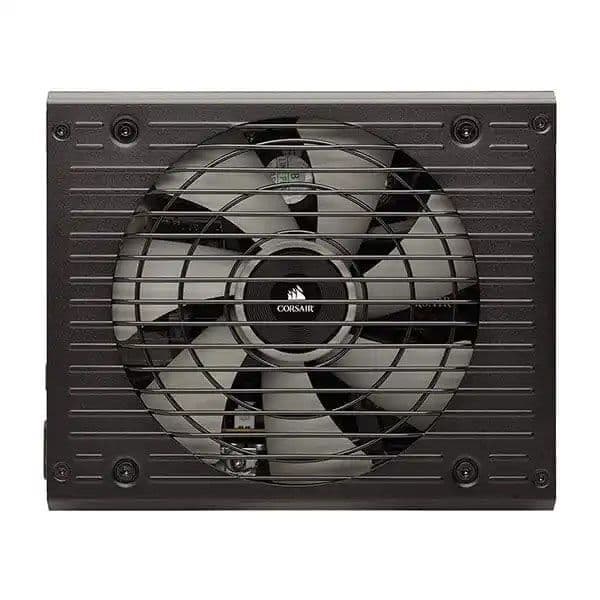

• Low-Noise Fan Operation: A 140mm fluid dynamic bearing fan with a specially calculated fan curve ensures minimum fan noise and efficient, effective cooling, even at full load.
• Zero RPM Fan Mode: At low and medium loads the cooling fan switches off entirely for near-silent operation.
• 80 PLUS Platinum Certified: Up to 92% efficiency for exceptional low power consumption, less noise, and cooler temperatures.
• 100% All Japanese 105°C Capacitors: Premium internal components ensure unwavering power delivery and long-term reliability.
• Modern Standby Compatible: Extremely fast wake-from-sleep times and better low-load efficiency.
• Fully Digital Platform: Resonant LLC topology with DC-to-DC conversion provides clean, consistent power, reduces coil whine for quieter operation, and enables use of more energy efficient sleep states.
• Ten-Year Warranty: Your guarantee of reliable operation that will last across several system builds.

Platinum efficiency, fully modular and virtually silent

CORSAIR HX850 power supplies give you extremely tight voltage regulation, quiet operation, Platinum-certified efficiency, and a fully modular cable set. Built with all Japanese 105°C capacitors, they’re a great choice for high performance PCs where reliability is essential.

Quiet, efficient operation HX850  80 PLUS Platinum efficiency reduces operating cost and excess heat, and Zero RPM fan mode ensures virtual silence at low and medium loads.	100% Japanese 105°C capacitors HX850 has Premium internal components ensure solid power delivery and long term reliability.	Zero RPM Fan Mode Since the fan doesn’t turn on until it’s needed, you’ll enjoy virtually silent operation at low and medium loads.	Ten year warranty Your guarantee of reliable operation that will last across several system builds.

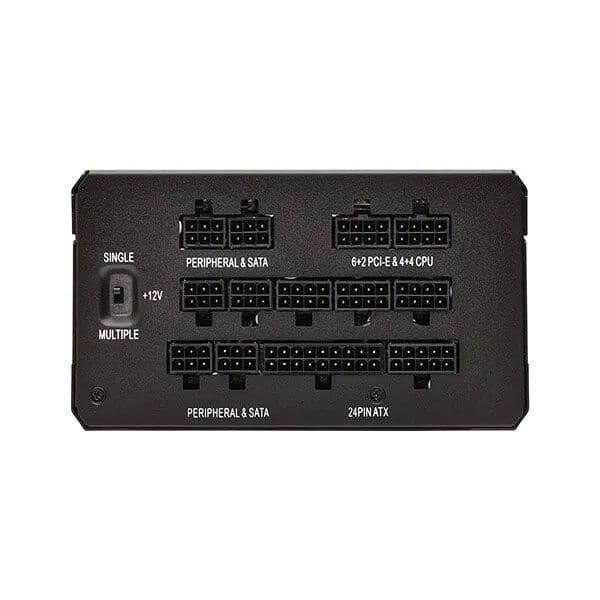

Power In Your Hands Toggle single +12V rail or multi +12V rail mode. In the ‘Single’ position, the full output capability of the power supply’s +12V rail is available to any and all connectors, while in the ‘Multiple’ position, each individual connector has Over-Current Protection so no more than 40A of current can be delivered on any given cable.	Easy Installation with HX850 comes with The fully modular DC cables make builds and upgrades easy, with clean, great-looking results.

Compatibility:

• 6th generation Intel Core processor Ready (Intel Skylake and Z170 motherboards)
• ATX12V v2.4 and EPS 2.92 standards and is backward compatible with ATX12V 2.2, 2.31 and ATX12V 2.01 systems

Contents and Specifications

• Package Contents:
• HX Series ATX Power Supply
• Power cord
• Mounting screws
• Cable ties
• Corsair case badge
• User manual
• Feature:
• 80 PLUS Platinum efficiency, delivering 90% energy efficiency at real world load conditions
• ZeroRPM mode for fanless operation at low loads and outstanding noise reduction
• 135mm thermally controlled, fluid dynamic bearing fan only spins up as needed

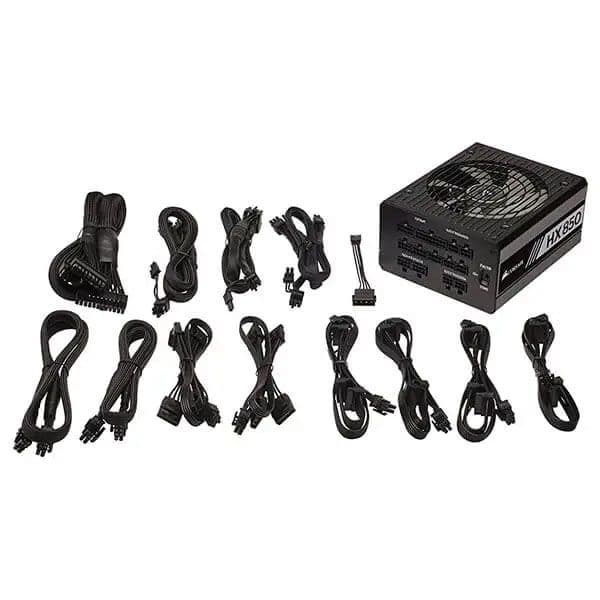

• Fully modular cables for easy installation, less clutter, and helps maximize airflow through your computer’s chassis
• Engineered to meet maximum power output at a server-grade 50°C temperature rating
• Over-voltage protection, under-voltage protection, short circuit protection, over power protection, and over temperature protection provide maximum safety to your critical system components
• Safety and Agency Approvals: FCC, ICES, CE, UL / CUL, CSA, C-Tick/RCM, TUV, CB, CU, KC Mark, RoHS, WEEE, RoHS (China), Reach
