FEATURES
Corsair Link monitoring and control

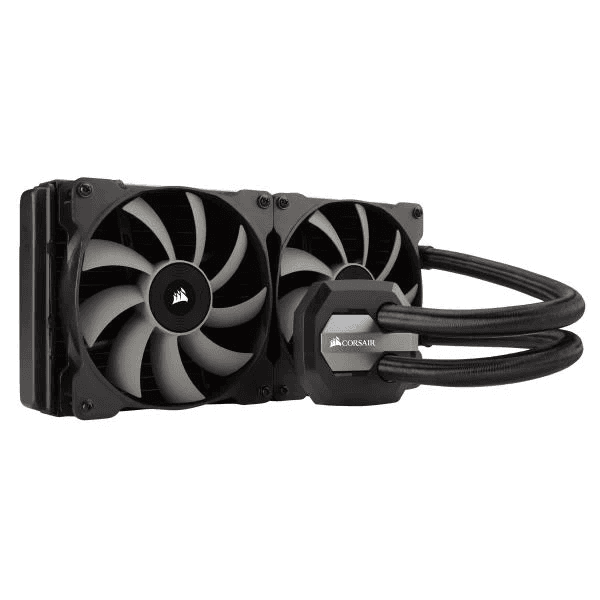

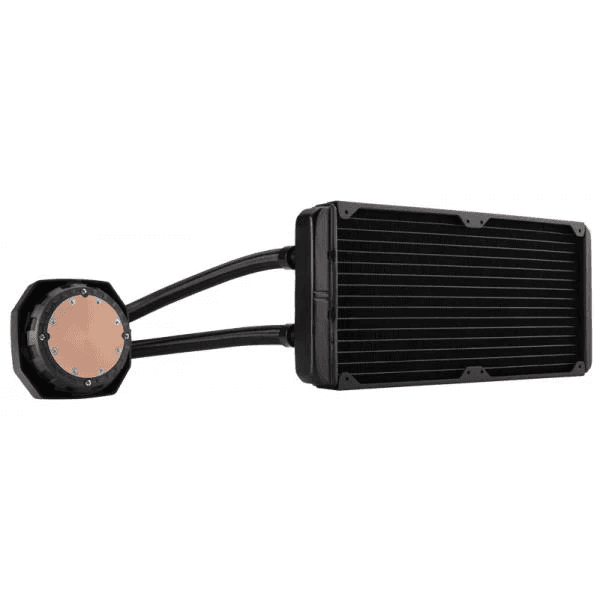

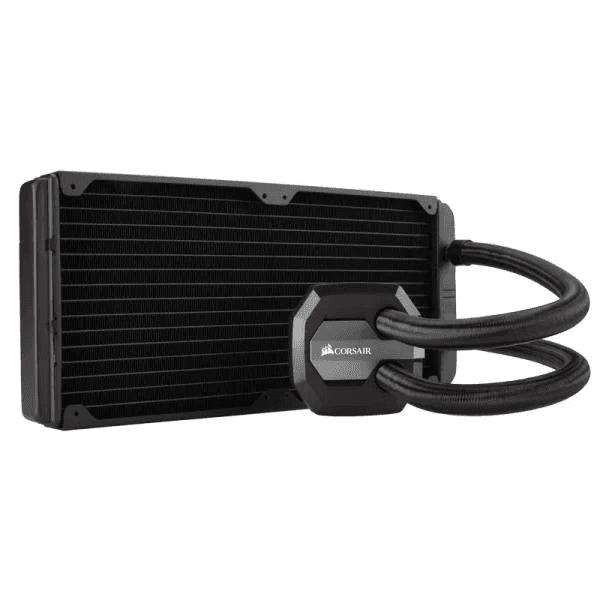

CORSAIR H100i v2 Monitor temperature and control lighting and fan speed on your screen. No additional hardware is necessary.
Entirely self-contained
Hydro Series H100i comes pre-filled, and never needs refilling or priming.
Dual radiator with custom fan design

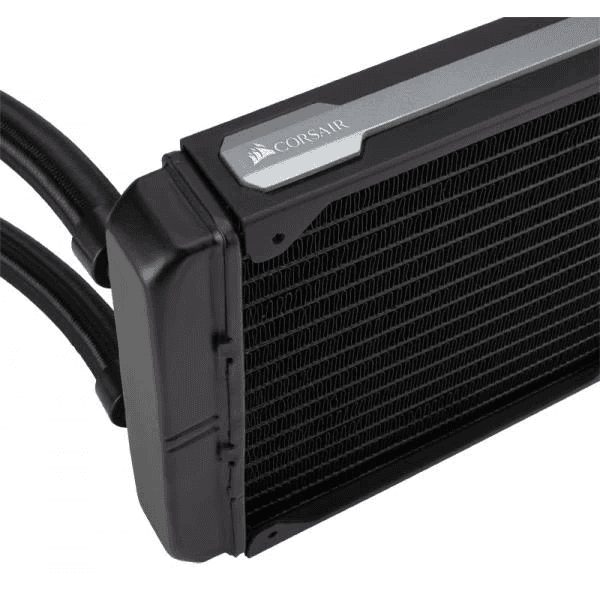

The 240mm top-mounted radiator provides maximum surface area for maximum cooling power. The 120mm fans use wide, low-pitch blades for better static pressure to noise ratio, offering improved efficiency at lower noise levels.
Built-in Corsair Link for monitoring, customization, and control
Attach the included Corsair Link cable to a USB header on your motherboard and download the free Corsair Link software to unlock even more power. You can customize cooling performance, monitor coolant and CPU temperatures, and change the color of the RGB LED lighting from the default white to match your system, or to change color based on temperature readings and other inputs.
Advanced SP120L PWM fans
Our custom-designed SP120L fans are different than standard case fans – they’re custom-designed to deliver high static pressure for mounting directly against radiators, and the fan blades are specially shaped for maximum air delivery with minimum noise. Since they’re PWM controlled, you can customize the fan speed to choose the optimal point on the performance/noise curve.
High-performance CPU cooling made simple
Gone are the days when watercooling required lots of work. The H100i v2 is a closed loop design that comes pre-filled, and it comes with a modular, tool-free mounting bracket for faster installation.
About Hydro Series Liquid CPU Coolers
Corsair Hydro Series CPU coolers give you the power of liquid cooling in a compact, easy-to-install package. They offer superior cooling for higher overclocking performance, without the complexity of traditional water cooling kit
Built-In Corsair Link
No additional hardware is necessary – just connect the included Corsair Link cable to a USB header on your motherboard and download the free Corsair Link Dashboard software. You can monitor coolant temperature and adjust cooling performance directly from your desktop.
Tool-free multiplatform magnetic mounting bracket kit
The modular design makes installation simpler, and it’s compatible with Intel and AMD processors.
Large-diameter, low permeability tubing
Minimal coolant evaporation helps ensure long life, and the resilient material offers both high flexibility and excellent leak protection.
Package contents
- Corsair Hydro Series H100i High Performance Liquid CPU Cooler
- Magnetic Multi-platform mounting kit for all modern CPU sockets
- Dual SP120L High Performance Fans
- USB Cable for Corsair Link Compatibility
- Fan and radiator mounting screws
- Thermal compound (pre-applied)
- Quick Start Guide
Compatibility
- Intel™ LGA 1150, 1151, 1155, 1156, 1366, 2011 and 2011-3
- AMD™ sockets FM1, FM2, AM2, AM3, and AM4
- Hydro Series H100i requires a case with dual 120mm fan mounts with 15mm spacing for a 240mm radiator
Technical specifications
- Radiator dimensions: 120mm x 275mm x 27mm
- Fan dimensions: 120mm x 120mm x 25mm
- Fan speed: 2700 RPM
- Fan airflow: 77 CFM
- Fan dBA: 37.68 dBA
- Fan static pressure: 4mm/H20
