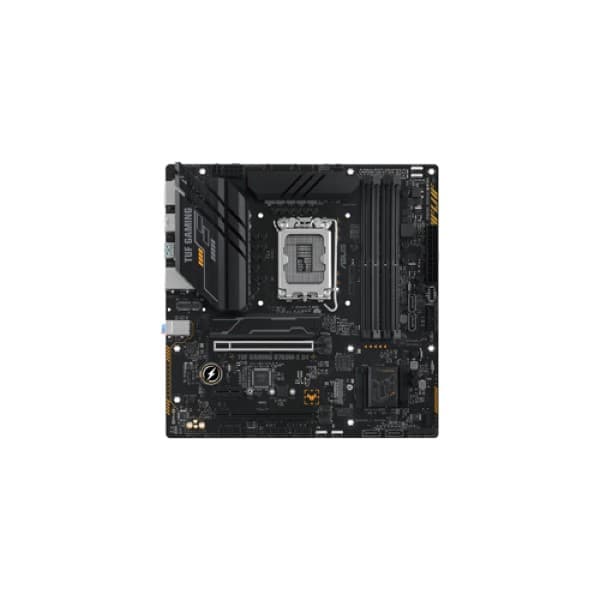

ASUS TUF GAMING B760M-E D4 Intel LGA1700 mATX Motherboard 128GB, 4xDDR4, 1 x PCIe 4.0 x16 slot, 2 x M.2 slots,4 x SATA,1xHDMI, 1xDP, 2.5Gb Ethernet
INTELLIGENT CONTROL
The TUF GAMING B760M motherboards pack flexible tools to tune every aspect of your system, enabling performance tweaks that expertly match your playstyle.
All-Around Energy Efficiency
The Power Saving function contains several settings to optimize power consumption and maximize energy savings. You can enable a CPU power limit, darken Aura lighting, and set the fan profile to a power-saving mode. You can also toggle the Power Saver plan built into Microsoft Windows.
UEFI BIOS
The renowned ASUS UEFI BIOS provides everything you need to configure, tweak, and tune your system. It offers intelligently simplified options for PC DIY beginners and comprehensive features for seasoned veterans.
Armoury Crate
The ASUS-exclusive Armoury Crate software centralizes control of all supported gaming products. A single intuitive interface lets you customize RGB lighting for all compatible devices and link them to Aura Sync for unidirectional illumination. It also displays information from and enables control of a growing hardware ecosystem. Armoury Crate also enables easy product registration and features a news section to keep you in touch with the gaming community.
ROCK-SOLID PERFORMANCE
With upgraded power delivery and comprehensive cooling options to fuel the latest Intel CPUs, plus support for DDR4 memory and PCIe 4.0 storage, the TUF GAMING B760M-E D4 is the perfect foundation for your next Intel battle rig.
POWER DESIGN
DrMOS Power Stages
10+1 power stages combine high-side and low-side MOSFETs and drivers into a single package to deliver power, efficiency, and stable performance for all compatible Intel processors.
Six-Layer PCB Design
The multi-layered printed circuit board design quickly dissipates heat around the voltage regulators, improving overall system stability and providing the CPU with more overclocking headroom.
8+4 Pin ProCool Power Connectors
Compared to most power inputs, ASUS ProCool connectors are built to tight specifications to ensure full contact with PSU power cables. The resulting lower impedance helps prevent hotspots and connector failure.
TUF Components
TUF Chokes
Certified military-grade TUF chokes deliver rock-solid power to the CPU, improving system stability.
TUF Capacitors
The TUF 5K black metallic capacitors provide 52% wider temperature tolerance and a 2.5X -longer lifespan than standard motherboard capacitors.
Digi+ VRM
The integrated Digi+ voltage-regulator module (VRM) is one of the finest in the industry, optimized for ultra-smooth and ultra-clean power delivery to the CPU at all times.
MEMORY & STORAGE
DRAM Overclocking Performance
Improvements to trace routing design provide the latest Intel processors with enhanced access to memory bandwidth. ASUS OptiMem II technology carefully maps memory signal pathways across different PCB layers to reduce path distance, and it adds shielding zones that significantly reduce crosstalk.
PCIe 4.0 Support
The two PCIe 4.0 M. 2 slots support up to two 2280 devices, and the data-transfer speeds are up to 64 Gbps via PCIe® 4.0, enabling quicker boot-up and app load times with OS or application drives.
COOLING
Cooler By Design
- 1. Enlarged VRM Heatsink
The extensive surface area of this heatsink covers the VRMs and chokes to improve heat dissipation.
- 2. Flexible M. 2 Heatsink
TUF GAMING B760M-E D4 has a flexible M. 2 heatsink that can be used on more M. 2 slots and keeps the M. 2 SSD at the optimum operating temperature for consistent performance and reliability.
Comprehensive Fan Controls
TUF GAMING B760M-E D4 features comprehensive fan controls that can be configured via the Fan Xpert 2+ utility in Armoury Crate or via the award-winning ASUS UEFI BIOS.
CONNECTIVITY
Connectivity
The TUF GAMING B760M-E D4 reaches its full performance potential with PCI Express 4.0, while an arsenal of USB ports, including one Type-C connection, expands compatibility and bandwidth even further.
EASY PC DIY
The TUF GAMING line offers an easy setup for all builders. The TUF GAMING Alliance ecosystem grants compatibility, while Armoury Crate has Fan Xpert 2+, hardware info, Two-Way AI Noise Cancelation, RGB options, and peripheral settings. This platform has intuitive tools to build and optimize dream rigs.
TUF GAMING ALLIANCE
Build With Confidence
TUF GAMING Alliance collaborates with ASUS and trusted PC component brands to ensure compatibility across various parts, such as PC cases, power supplies, CPU coolers, and memory kits. The TUF GAMING Alliance will grow even stronger with new partnerships and components being added regularly.
TUF PROTECTION
SafeSlot Core+ & SafeDIMM
SafeSlot Core+ is a reinforced metal sheath that keeps a card firmly installed in a PCIe slot. The ASUS SafeDIMM sheath supports and protects memory modules on select ASUS motherboards, empowering you to insert modules with speed, accuracy, and confidence.
ESD Guards
ESD Guards prolong the life of components while preventing damage from electrostatic discharge. They protect for up to +/—10 kV of air discharge and +/—6 kV of contact discharge, greatly surpassing the industry standards of +/—6 kV and +/—4 kV. Surface-mounted TVS diodes in a dual in-line package help protect your PC from voltage spikes.
TUF LANGuard
TUF LANGuard is a military-grade innovation that integrates advanced signal-coupling technology and premium surface-mounted capacitors to improve throughput and protect the motherboard from lightning strikes and static electricity.

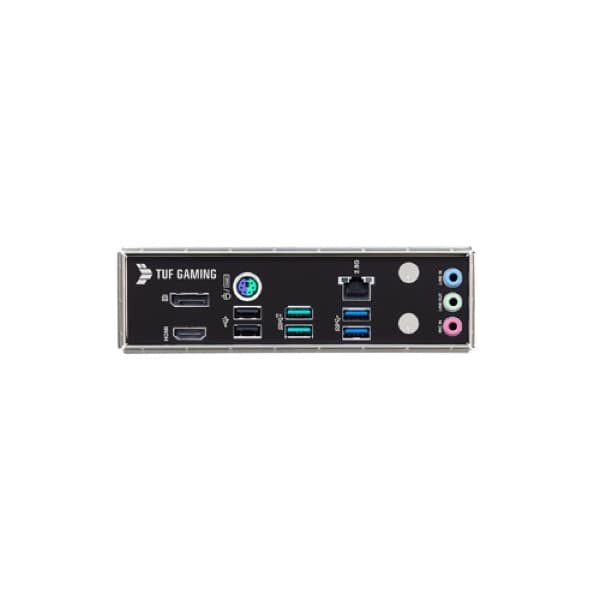

Stainless Steel Back I/O Panel
TUF GAMING motherboards have corrosion-resistant stainless steel back I/O panels bonded with chromium oxide, providing a three times longer lifespan than traditional panels. With this protective feature, TUF GAMING motherboards passed 72-hour salt fog testing, while other brands only passed 24-hour testing.
EASY CONFIGURATION
M. 2 Q-Latch
The innovative Q-Latch makes installing or removing an M. 2 SSD easy without needing specific tools. The design employs a simple locking mechanism to secure the M. 2 SSD, neatly eliminating the need for screws.
Removable Captive Screws
Specialized M. 2 slot screws reduce the risk of dropping or losing a screw somewhere in your case during M. 2 heatsink removal.
Q-LED
The on-board Q-LED troubleshooting lights give PC builders a quick indicator to confirm that key components, CPU, RAM, graphics card, and storage devices function normally during startup.
IMMERSIVE GAMING
TUF GAMING B760M motherboards provide a feature-packed high-performance gaming package. They feature ultrafast networking for smoother online gameplay, pristine audio with positional cues for FPS Gaming, and onboard RGB lighting that syncs with attached gear to personalize your gaming atmosphere.
NETWORKING
2.5 Gb Ethernet
2.5 GB on-board Ethernet kicks your LAN connection up a notch with a bandwidth improvement of up to 2.5X. Using your existing LAN cable, you can use this networking upgrade to experience smoother, lag-free gaming, immediately stream high-resolution videos, and enjoy faster file transfers.
AI NOISE CANCELATION
Two-Way AI Noise Cancelation
This powerful ASUS-exclusive utility leverages a massive deep-learning database to reduce background noise from the microphone* and incoming audio while preserving voices. Distracting keyboard clatter, mouse clicks, and other ambient noises are muffled so you can hear and be heard with excellent clarity while gaming or during calls.
Realtek 7.1 Surround Sound
The unique audio codec designed in close collaboration with Realtek for TUF GAMING B760M motherboards features an unprecedented 98 dB signal-to-noise ratio for the stereo line out, providing pristine audio quality.
Addressable Gen 2 RGB Header
Three addressable Gen 2 RGB headers will support up to 500 LEDs on Gen 2 RGB devices, empowering Aura Sync to tailor lighting effects across your whole system automatically. The new headers also offer full backward compatibility with existing Aura Sync gear.
