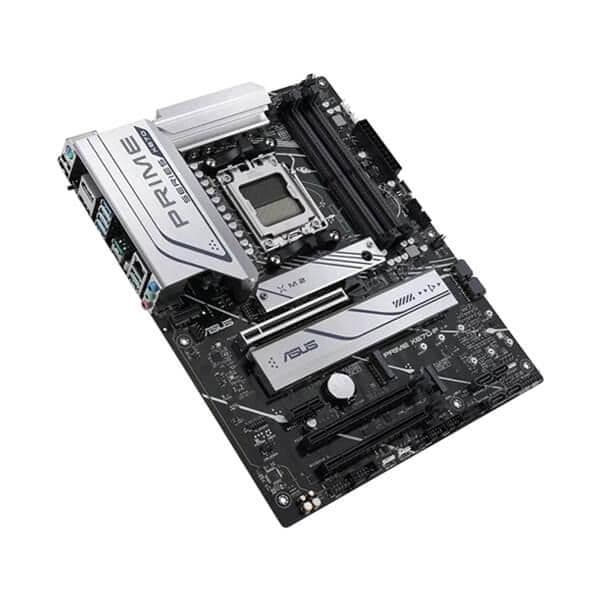

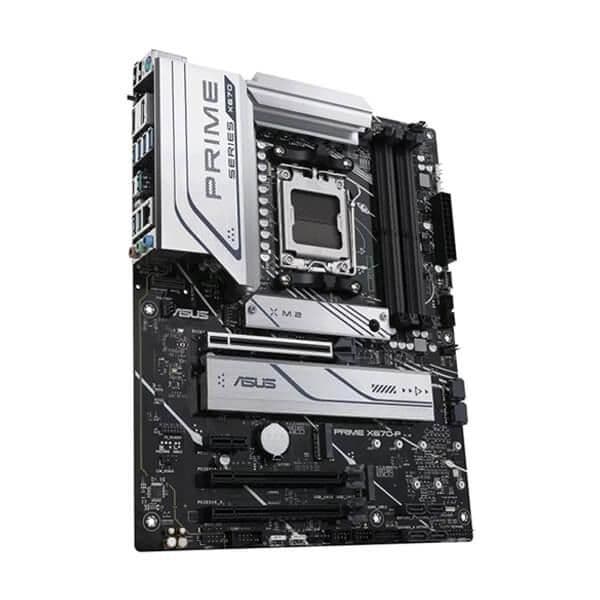

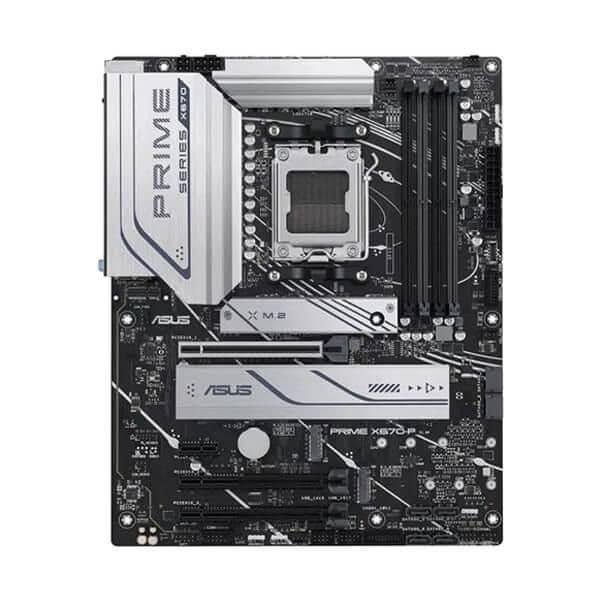

ASUS PRIME X670-P CSM MOTHERBOARD

PCIe 5.0 Slot

Prime X670 motherboards offer PCIe 4.0 connectivity for the latest GPUs. The wide bandwidth and superfast transmission speeds allow you to create feature-rich builds that can handle high loads effortlessly.

PCIe 5.0 M.2 Support

PRIME X670-P WIFI offers a total of three M.2 slots, the first one supports data-transfer speeds of up to 128Gbps via PCIe 5.0, enabling quicker boot-up and app load times with OS or application drives. *Actual transmission speeds will be lower than the theoretical maximum speed.

M.2 Heatsink

An M.2 heatsink takes care of the M.2 slot, warding off throttling that can occur with M.2 storage during sustained transfers. Removable captive screws reduce the risk of drops or loss during heatsink removal.

VRM Heatsinks and High-quality Thermal Pads

Two massive VRM heatsinks and high-quality thermal pads improve heat transfer from the MOSFETs and chokes for better cooling performance.

Robust Power Design

Stable power is essential to extract every last bit of performance out of AMD processors. The PRIME X670-P WIFI is geared to cater to the demands of these high-core-count CPUs. 1. ProCool Connectors Proprietary connectors augment the motherboard's link to the PSU with 4 pin+8 pin connectors that pass 12 volts of power directly to the processors. Each jack features solid pins that can handle more current than hollow-pin connectors. 2. 12+2 DrMOS Power Stages 12+2 DrMOS power stages combine high-side and low-side MOSFETS and drivers into packages rated for 60 amperes each, delivering power, efficiency, stability and performance to current and future AMD processors.

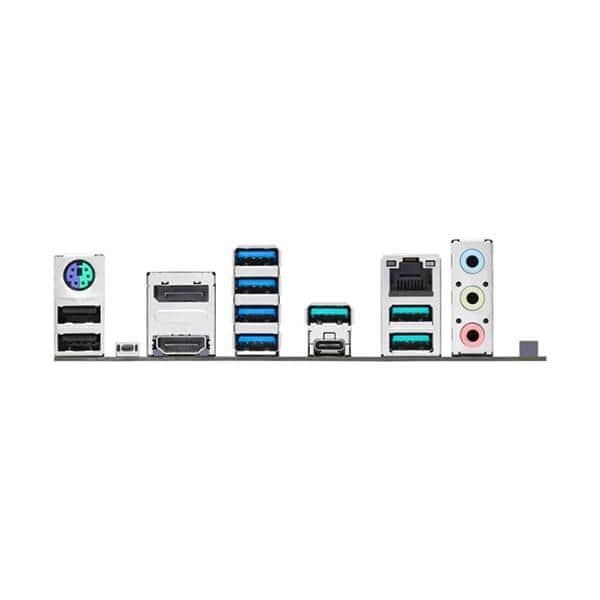

USB 3.2 Gen 2x2 Type-C

A batch of USB ports supports high-end rigs loaded with peripherals, including both front and rear USB Type-C connectors with ultrafast USB 3.2 Gen 2x2 for transmission speeds of up to 20Gbps.

USB4 Support

PRIME X670-P CSM motherboard features USB4 support via a Thunderbolt (USB4) header. With an ASUS add-on card*, PRIME motherboards can enable bi-directional speeds of up to 40 Gbps on a single cable, while providing power to the fast-charge device. Additionally, this card has a daisy-chain function for multi-screen connection and supports up to dual displays with 4K resolution. *ASUS add-on card is sold separately.

Q-Latch

The innovative Q-Latch makes it easy to install or remove an M.2 SSD without the need for specific tools. The design employs a simple locking mechanism to secure the drive and neatly eliminate traditional screws.

BIOS FlashBack

BIOS FlashBack is the simplest and safest (UEFI) BIOS update method. Simply drop the (UEFI) BIOS file onto a FAT32 formatted USB stick, plug it into the USB BIOS FlashBack port and press the button. Updates can even be performed without having memory or a CPU installed.
